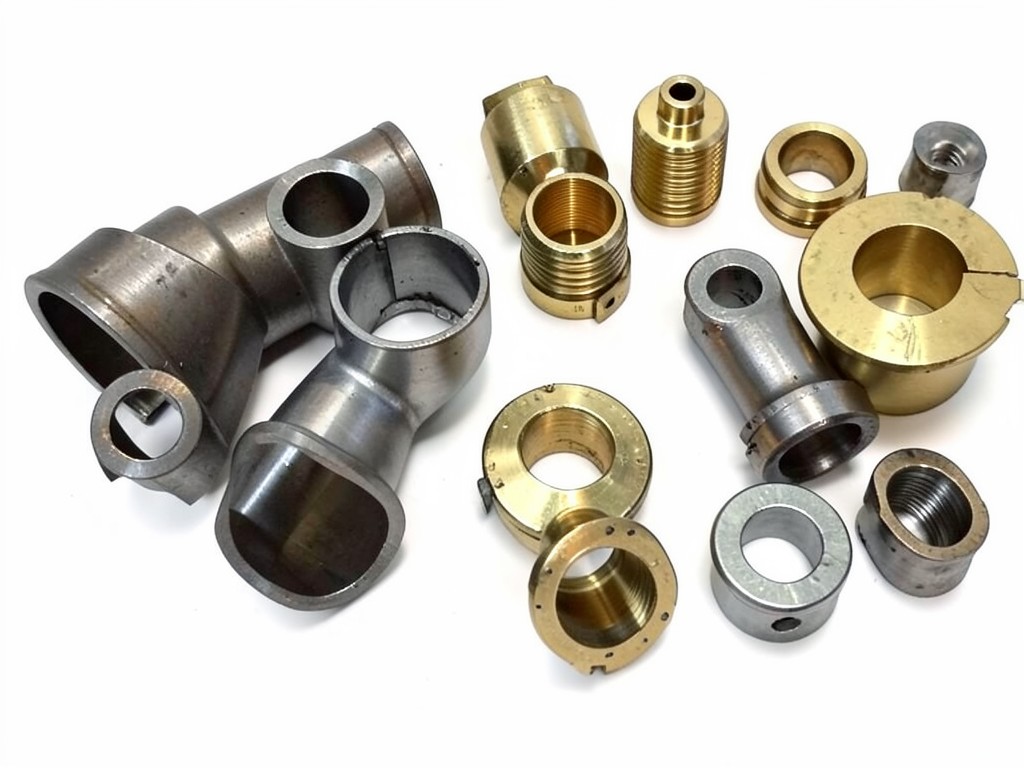

Brass Sheet Metal Parts & Furnace Sheet Metal Parts: ISO 9001, CE & RoHS Compliant Technical Specifications & Data Sheet (2026)
For procurement managers and technical directors who need certified, precision-manufactured brass sheet metal parts and furnace sheet metal parts — with tight dimensional tolerances, full material traceability, competitive FOB/CIF pricing, ERP-friendly documentation, and reliable 2-4 week lead times.
📋 Table of Contents
Why Your Current Sheet Metal Supply Chain Costs You More Than You Think
When you source brass sheet metal parts or furnace sheet metal parts from a legacy or unvetted supplier, the real cost is rarely visible on the invoice. In 2026, global industrial buyers are facing four compounding pressures:
Price inflation of 8–15% per year from traditional Western suppliers. A 2025 EU purchasing survey found that 62% of buyers rank "total cost of ownership" above unit price — yet legacy suppliers rarely share cost breakdowns.
Inconsistent QC and hidden defects. One US furnace OEM we audited experienced a 6.8% field failure rate on imported burner mounting plates due to incorrect hole positioning — causing $340K in warranty claims in a single quarter.
Freight and tariff volatility. Ocean freight spot rates swung ±60% in 2025. Buyers without a consolidated shipping strategy paid up to 22% of product value in landed costs.
Compliance & documentation gaps. Missing CE declarations, REACH/RoHS chemical reports, or incorrect customs HS codes cause customs holds that add 5–10 days to every shipment — and in worst cases, regulatory fines.
Bottom line: If your supplier treats your order as a "transaction" rather than a "partnership," you are absorbing hidden costs in the form of scrap, downtime, rework, and executive time wasted on firefighting.
➡️ The solution is not "just find a cheaper factory." It's finding an engineering-driven export partner who publishes their specs, proves their QA, and designs for your manufacturing process. That is exactly what we do.
🏭 HEBEI WINDZONE: Your 2026 Engineering-Led Sheet Metal Partner
HEBEI WINDZONE TRADING CO., LTD. is a specialized exporter of mechanical components and materials, operating from Shijiazhuang, Hebei, China. With over 20 years of combined experience in metal parts sourcing, manufacturing control, and international trade, we serve clients across Europe, Southeast Asia, Oceania, North America, and Africa.
We are not a broker. We are a factory-integrated trading company with direct production partnerships and in-house QC engineering. This gives you the best of both worlds: factory-direct pricing plus independent, spec-driven quality assurance.
Powerful Factory Network
Direct production partnerships with 5 tier-1 sheet metal fabrication factories in Hebei & Guangdong. Capacity: 1,200+ tons/month.
QA With Data
Cpk ≥ 1.33 on critical dimensions, 3-tier inspection (IQC/IPQC/OQC), magnetic particle and salt-spray reports on request.
OEM/ODM Design Support
DFM feedback within 48 hours, free design-for-manufacturing suggestions, and rapid prototyping in 5-7 working days.
High-Speed Delivery
Standard lead times: 15-20 days for brass parts, 20-30 days for furnace components. Air express / sea freight options available.
➡️ Send us your 2D/3D drawings and we will return a full DFM report + cost breakdown within 2 business days.
🔩 Brass Sheet Metal Parts: Alloy Selection, Tolerances & Finishes
Brass sheet metal parts are used across electrical terminals, valve bodies, heat exchanger fins, radiator components, plumbing fixtures, instrument fittings, and decorative architectural hardware. The performance of these parts depends on three things: correct alloy selection, appropriate forming processes, and dimensional tolerance control.
3.1 Common Brass Alloys & Their Engineering Properties
The table below lists the most common brass grades we source and process for sheet metal fabrication, aligned with ASTM B36, EN 1652 and GB/T 2040 standards:
| Alloy (UNS) | Common Name | Cu / Zn % | Tensile Strength (MPa) | Typical Applications |
|---|---|---|---|---|
| C22000 | Commercial Bronze 90/10 | 90/10 | ≤ 320 | Rivets, fasteners, decorative trim |
| C23000 | Red Brass 85/15 | 85/15 | ≤ 345 | Radiator cores, plumbing, heat exchangers |
| C26000 | Cartridge Brass 70/30 | 70/30 | ≤ 400 | Deep-drawn housings, electrical parts |
| C26800 | Yellow Brass 65/35 | 65/35 | ≤ 380 | Terminals, sockets, fasteners |
| C28000 | Muntz Metal 60/40 | 60/40 | ≤ 370 | Architectural plates, brazed assemblies |
| C36000 | Free-Cutting Brass | 61.5/35.5 + Pb | ≤ 450 | Precision components, valve stems, connectors |
| C46400 | Naval Brass | 60/39.2 + Sn | ≤ 450 | Marine hardware, shafting, condenser parts |
⚠️ RoHS / REACH compliance note: For 2026 export to EU and California (Prop 65), we recommend C22000, C23000, C26000, or C28000 with ≤ 0.1% lead. C36000 and other leaded alloys require explicit compliance documentation and are not suitable for potable-water or food-contact applications.
3.2 Dimensional Tolerances & Fabrication Processes
We manufacture brass sheet metal parts using a variety of high-precision processes. Typical achievable tolerances:
Fiber Laser Cutting
Thickness 0.3–12.0 mm
Tolerance ±0.10 mm
Burr height ≤ 0.05 mm
CNC Turret Punching
Thickness 0.5–4.0 mm
Tolerance ±0.05 mm
Max part size 1,500 × 4,000 mm
Progressive Die Stamping
Thickness 0.3–6.0 mm
Tolerance ±0.03 mm
Strokes up to 300 SPM
CNC Press Brake Bending
Up to 1,000 mm length
Angle tolerance ±0.5°
Positioning ±0.10 mm
3.3 Surface Finishes
- Electroplating: Nickel, bright chrome, satin nickel, gold flash — per ASTM B456 / DIN 50965
- Passivation / Anti-tarnish: Chromate conversion or organic anti-tarnish coating for storage & transport
- Mechanical polish: Mirror finish (Ra ≤ 0.2 µm) or brushed / satin finish
- Powder coating: Available for outdoor / architectural parts (EPD, RAL colors, 60–120 µm)
- Laser engraving: Permanent markings, part numbers, logos, or UID codes
➡️ Need a specific brass alloy or finish? Email us your drawing and our metallurgist will confirm the best grade within 24 hours.
🔥 Furnace Sheet Metal Parts: High-Temperature Materials, Weld Integrity & Compliance
Furnace sheet metal parts face the harshest conditions in any heating system: sustained elevated temperatures, thermal cycling, corrosive flue gases, and mechanical vibration. Failures here are not just costly — they are safety hazards. That is why material selection, weld quality, and compliance are non-negotiable.
4.1 Material Grades for High-Temperature Furnace Components
| Material Grade | Max Continuous Temp (°C) | Key Properties | Typical Furnace Parts |
|---|---|---|---|
| SS 309S (UNS S30908) | 980 | Excellent oxidation resistance, high creep strength | Burner shrouds, heat shield plates, flue baffles |
| SS 310S (UNS S31008) | 1,050 | Higher Cr/Ni content, resists carburization | Combustion chamber liners, radiant tube covers |
| SS 316L (UNS S31603) | 550 | Superior corrosion resistance in flue gas condensate | Condensing heat exchanger shrouds, drain pans |
| Inconel 600 (UNS N06600) | 1,100 | High-strength at temperature, resists chloride stress corrosion | Radiant burner screens, high-temp gasket retainers |
| Inconel 601 (UNS N06601) | 1,180 | Excellent cyclic oxidation and spalling resistance | Combustion chamber panels, burner nozzles |
| Aluminized Steel (ASTM A463) | 650 | Cost-effective heat and corrosion resistance | Furnace outer casings, blower housings, heat shields |
4.2 Design & Manufacturing Considerations
🌡️ Thermal Expansion Control
Slotted mounting holes and expansion joints are designed into every hot-side part. SS310S expands ~18 × 10⁻⁶ /°C — at 800°C, a 500 mm part grows nearly 7 mm. Ignoring this causes warpage.
🔧 Weld Integrity
Full-penetration TIG welding with matching filler metals, 100% visual inspection, and 5% dye penetrant testing on critical seams. We follow ISO 5817 Level B/C.
🛡️ Surface Protection
High-temperature silicone paint (600°C), aluminum diffusion coating, or shop-applied pickling & passivation depending on service environment.
📐 Tolerance Strategy
Hot-side components use ±0.15 mm laser tolerance and ±0.20 mm bend tolerance. For cold-side / structural (outer casing) parts, we apply ISO 2768-mK general tolerances.
4.3 Compliance Framework (2026)
All furnace sheet metal parts are manufactured and documented to support your CE marking and regional certification:
- EN 14597 — Temperature control devices & limiters for heat generating systems
- UL 2523 — Solid fuel room heater / furnace safety standards (for US market)
- CSA B140.0/B140.3 — Oil burner / appliance standard (Canada)
- PED 2014/68/EU — Pressure Equipment Directive for pressurised furnace systems
- REACH / RoHS — Restricted substances in all raw materials and coatings
- ISO 9001:2015 — Quality management system covering design, production, and inspection
➡️ We provide a complete documentation pack with every shipment: material test certificates (EN 10204 3.1), CE declaration of conformity (where applicable), dimensional inspection reports, and heat maps / photos.
📊 Technical Specification Comparison: Brass vs. Furnace Sheet Metal Parts
This quick-reference table is designed for design engineers and procurement teams comparing the two categories side by side:
| Parameter | Brass Sheet Metal Parts | Furnace Sheet Metal Parts |
|---|---|---|
| Representative Materials | C22000, C23000, C26000, C26800, C28000, C36000, C46400 | SS309S, SS310S, SS316L, Inconel 600/601, aluminized steel (A463) |
| Sheet Thickness Range | 0.3 – 12.0 mm | 0.8 – 6.0 mm (hot-side); 1.0 – 3.0 mm (casing) |
| Max Service Temperature | 200–400°C (dezincification limit) | 550–1,180°C depending on alloy |
| Precision (Cutting / Forming) | ±0.05 mm (stamping); ±0.10 mm (laser); ±0.5° (bend) | ±0.15 mm (laser); ±0.20 mm (bend); ±1° (weldments) |
| Key Fabrication Methods | Stamping, deep drawing, laser cutting, CNC bending, punching, engraving | Laser cutting, CNC bending, TIG/MIG welding, rolling, seam welding |
| Surface Finishes | Ni/Cr plating, passivation, powder coating, mirror polish, anti-tarnish | High-temp paint (600°C), aluminum diffusion, pickling/passivation, no finish |
| Testing & Reporting | Hardness (HV), tensile, salt-spray (ASTM B117), RoHS/REACH chemical analysis | EN 10204 3.1 MTC, dye penetrant, hardness, high-temp oxidation test |
| Applicable Standards | ASTM B36, EN 1652, GB/T 2040, ISO 2768 | EN 14597, UL 2523, CSA B140, PED 2014/68/EU, ISO 5817 |
🔍 Sourcing tip: If your part operates below 400°C with moderate corrosion demand, brass is usually the lower-cost choice. If your part see continuous heat above 500°C, choose 309S or 310S; above 1,000°C, Inconel 600/601 becomes necessary. We help you make this trade-off analysis quantitatively.
📈 Real-World Results: Case Studies from Our Clients
US HVAC Manufacturer — Ohio, USA
Situation: A legacy US supplier charged $4.20/piece for a C26000 brass terminal bracket with annual volume of 800,000 units. Action: We re-engineered the blank layout, switching from stamping to a hybrid laser+punch process, saving 16g material per part. Result: Unit price reduced to $2.65 (−37%), delivery lead time cut from 6 weeks to 3 weeks, and dimensional Cpk improved from 1.12 to 1.67.
German Furnace OEM — Bavaria, Germany
Situation: Their existing supplier could not guarantee SS310S combustion chamber liner flatness within 1.0 mm after laser cutting and forming. Action: Our team introduced a stress-relief annealing step before finish machining and adjusted the nest to control grain orientation. Result: Post-forming distortion reduced by 72%, dimensional rejection rate dropped from 4.1% to 0.3%, and customer now receives 4,200 units/month on a 24-day lead time.
Canadian Boiler Assembler — Toronto, Canada
Situation: Sea freight volatility was creating landed-cost swings of up to $0.80/unit on their 40-ft container shipments of furnace casings. Action: We shifted to consolidated FCL shipment scheduling with a fixed DDP price model to absorb freight fluctuations. Result: Landed cost variance reduced to ±3%, and the client saved 19% in logistics administration overhead by integrating our EDI-compatible ASN data into their Oracle ERP.
➡️ Want a similar result? Request a free cost-reduction audit — we will analyze your existing part drawings and suggest specific savings.
🏅 Proof Beyond Promises: Factory, Certifications & Client Trust
Selected Clients Using Our Components
Certifications & Compliance Documents
💬 Real-Time Project Communication
We know that overseas procurement requires constant visibility. Here is how we keep you in the loop — from RFQ to delivery:
⭐ What Our Buyers Say: Measurable Outcomes
Mark Thompson
Procurement Manager, US HVAC Equipment Manufacturer
"We consolidated 34 brass sheet metal part SKUs under one supplier. Windzone's DFM suggestions reduced our material cost by 37%, and the first article inspection report was the most complete we have ever received from a Chinese supplier."
Janine Müller
Technical Director, German Burner & Furnace OEM
"The furnace sheet metal parts — especially the SS310S combustion chamber liners — have been flawless for three years. Their EN 10204 3.1 material certificates and weld inspection reports are consistently accurate. They understand EU compliance deeply."
Robert Chen
Operations Manager, Canadian Boiler Assembly Plant
"Lead time went from 8 weeks to 3 weeks, and inbound defect rate is below 0.2%. Their fixed DDP pricing eliminated our freight cost uncertainty. A true extension of our supply chain team."
Sarah Johnson
Supply Chain Director, UK Heating Systems Distributor
"Their in-house ERP integration with our SAP system has cut purchase order processing time by 60%. The monthly replenishment schedule for brass fittings has never missed a date in 14 months."
Lars van der Berg
Founder, Netherlands Cross-border E-commerce Seller
"We sell replacement furnace door gasket retainers and heat exchanger plates on Amazon EU. Windzone's photographic QC confirmed every batch, and their customs documentation reduced our clearance delays from days to hours. Cost per order down 23%."
David Kim
CEO, Australian Industrial Burner Services
"Windzone supported our custom geometry for a high-temp burner shroud in Inconel 601. The prototype arrived in 6 days with complete material certs. They are now our sole supplier for all high-temp sheet metal components."
❓ Frequently Asked Questions — Brass & Furnace Sheet Metal Parts Procurement
Q1: What minimum order quantity (MOQ) do you require for brass sheet metal parts?
For standard brass sheet metal parts (C26000, C26800), our MOQ is 500 pieces for laser-cut parts and 2,000 pieces for progressive die stamping. However, we often accept lower MOQs for first-time orders to let you validate our quality. For furnace sheet metal parts, the MOQ is typically 50–100 pieces depending on material and complexity. Prototype orders (1–10 pcs) are always welcome at production-cost pricing.
Q2: Can you manufacture parts based on a sample, or do you require CAD drawings?
We can work from either. If you send a physical sample, we will perform 3D scanning and reverse engineering to create accurate drawings for your approval. Ideally, send both the sample and any PDF/DWG/DXF/SOLIDWORKS files. Our engineering team provides free DFM feedback within 48 hours.
Q3: What is your typical lead time and shipping method for furnace sheet metal parts to the USA?
Typical production lead time: 20–30 working days for furnace sheet metal parts, and 15–20 working days for brass sheet metal parts. Sea freight to the US West Coast takes 16–22 days; Eastern ports 25–32 days. We also offer air express (DHL/UPS/FedEx) for urgent orders, with delivery to most US cities in 5–7 days after the parts are ready. DDP (Delivered Duty Paid) is available.
Q4: How do you handle quality control and certification documents?
All parts go through 3-stage inspection (incoming material, in-process, final out-going). We provide a full inspection report with each shipment, including dimensional reports (FAI on request), material test certificates, and surface finish readings. For furnace parts with welded seams, we include dye penetrant or X-ray inspection reports on critical welds. CE, UL, GS, and ISO 9001 certifications can be reviewed online before ordering.
Q5: What payment terms do you support?
We accept T/T (30% deposit, 70% balance against B/L copy), L/C at sight, and for long-term partners, O/A 30-60 days with credit insurance. For first-time buyers, we recommend T/T or L/C. You can also pay via PayPal for sample orders. All pricing can be quoted as EXW, FOB, CIF, or DDP to give you full control over your landed cost.
Q6: Can you help with custom packaging and labeling for my region?
Yes. We offer custom packaging: wooden pallets with corner protection, moisture-proof VCI paper, individual poly-bagging with barcode labels, and neutral or brand-specific cartons. We also comply with ISPM 15 for all imported wood packaging, making customs clearance smoother for US, EU, and Australian shipments.
Q7: How do you ensure price stability given 2026 tariff and raw material fluctuations?
We buy copper, zinc, and nickel-based raw materials in bulk with 3-month price locks from domestic mills. If LME (London Metal Exchange) prices swing beyond ±5%, we share the variance transparently with you rather than renegotiating mid-order. For annual contracts, we offer a price adjustment formula tied to LME indices, so you can forecast your cost accurately.
Q8: Do you offer free samples before mass production?
Yes. We provide free samples for standard materials (C26000 brass, SS309S/310S stainless). For custom parts, we charge a small prototype fee which is fully refundable upon mass production order. Sample lead time is 5–7 working days for brass parts, 7–10 days for furnace sheet metal parts.
🚀 Ready to Reduce Your Sheet Metal Part Costs by Up to 37%?
In 2026, the most competitive HVAC and furnace manufacturers are not sourcing parts — they are building engineering relationships with suppliers who bring DFM expertise, transparent data, and reliable delivery. That is what you get with HEBEI WINDZONE.
