Basic Parts of Lathe Machine vs Parts of Planer Machine: The Definitive Technical & Procurement Guide for Buyers
Are you a procurement manager, technical director, or operations lead struggling with high component costs, inconsistent machining quality, and unreliable supplier lead times? This 2026 deep-dive covers every critical component of lathe and planer machines — with dimensions, materials, tolerances, and compliance data you can verify.
⚠️ Supply Chain Alert: European and North American buyers reporting 25%–40% cost savings by sourcing precision machine parts directly from ISO-9001-certified Chinese manufacturers.
🏭 HEBEI WINDZONE export partner facility, Shijiazhuang
📋 Table of Contents
⚠️ Why Machine Component Knowledge Drives ROI in 2026
In the current global manufacturing landscape, unplanned downtime costs industrial plants an average of $260,000 per hour, according to recent industry studies. When a lathe carriage wears out or a planer crossrail fails, your entire production line stops.
Yet many procurement teams still source machine parts with outdated specifications, leading to:
- ❌ Incorrect tolerances — Parts fail within 3–6 months, not 10+ years
- ❌ Hidden logistics costs — Air freight + tariffs add 30–60% to total landed cost
- ❌ Supplier inconsistency — Batch #1 is perfect, batch #2 is scrap
- ❌ Missing certifications — CE/ISO non-compliance blocks customs clearance in EU/US ports
- ❌ Poor OEM/ODM communication — Custom modifications result in 5+ rounds of revisions
💡 Analyst Insight: A 2025 industrial sourcing report found that 72% of procurement managers who switched to vertically-integrated exporters with in-house QC reduced their total cost of ownership (TCO) by 30%+ within two purchase cycles.
DOWNSTREAM COST BREAKDOWN
$260K/hr
Downtime cost, the hidden tax on bad machine parts — reduced by 63% with correctly-specified components.
🌍 Buyers from 20+ countries
Europe · North America · Southeast Asia · Oceania · Africa
🔧 Basic Parts of Lathe Machine: Full Breakdown
A lathe machine — often called the "mother of all machine tools" — consists of several critical components that determine its cutting accuracy, rigidity, and lifespan. Here is the complete 2026 reference table.
1. Bed — The Foundation
The bed is the main structural base of the lathe. It aligns and supports all other components. Made of grey cast iron (HT250/HT300) with hardened and ground guideways, it absorbs vibration during cutting.
- Material: Cast iron, stress-relieved
- Guideways: Induction-hardened to 45–55 HRC
- Key Spec: Width range 200–600 mm for standard lathes
2. Headstock (Spindle Box)
The headstock houses the main spindle, gears, and clutch mechanism. It provides rotational power to the workpiece. The spindle runs in precision bearings (tapered roller or angular contact) with runout < 0.005 mm.
- Spindle bore: 20–100 mm typical
- Speed ranges: 30–3000 RPM (gear or inverter-driven)
- Mounting: D-type camlock spindle nose (A1/A2) etc.
3. Tailstock
The tailstock supports the free end of long workpieces, and can hold drills or reamers. It slides on the bed and can be clamped at any position. The tailstock quill has 60–80 mm stroke with a taper (MT#3–MT#5).
4. Carriage & Cross-Slide
The carriage rides along the bed, carrying the cutting tool. It consists of the saddle, cross-slide, compound rest, and tool post. The cross-slide moves perpendicular to the workpiece axis.
- Tool post: Quick-change or four-way turret type
- Compound slide swivel: ±45° for taper turning
- Cross-slide travel: 150–350 mm depending on swing
5. Feed Mechanism — Lead Screw & Apron
The lead screw and feed rod transmit motion from the headstock to the carriage, enabling automatic longitudinal and cross feeds. The apron contains the clutch and the half-nut mechanism for thread cutting.
- Lead screw pitch: 4–16 mm metric / imperial
- Feeds range: 0.01–1.0 mm/rev
- Thread cutting ability: Metric, inch, module, diametral
6. Work-Holding Devices
3-jaw self-centering chuck (scroll type), 4-jaw independent chuck, collets, faceplates, and centers. For high-precision jobs, hydraulic or pneumatic chucks with 0.01 mm repeatability are available.

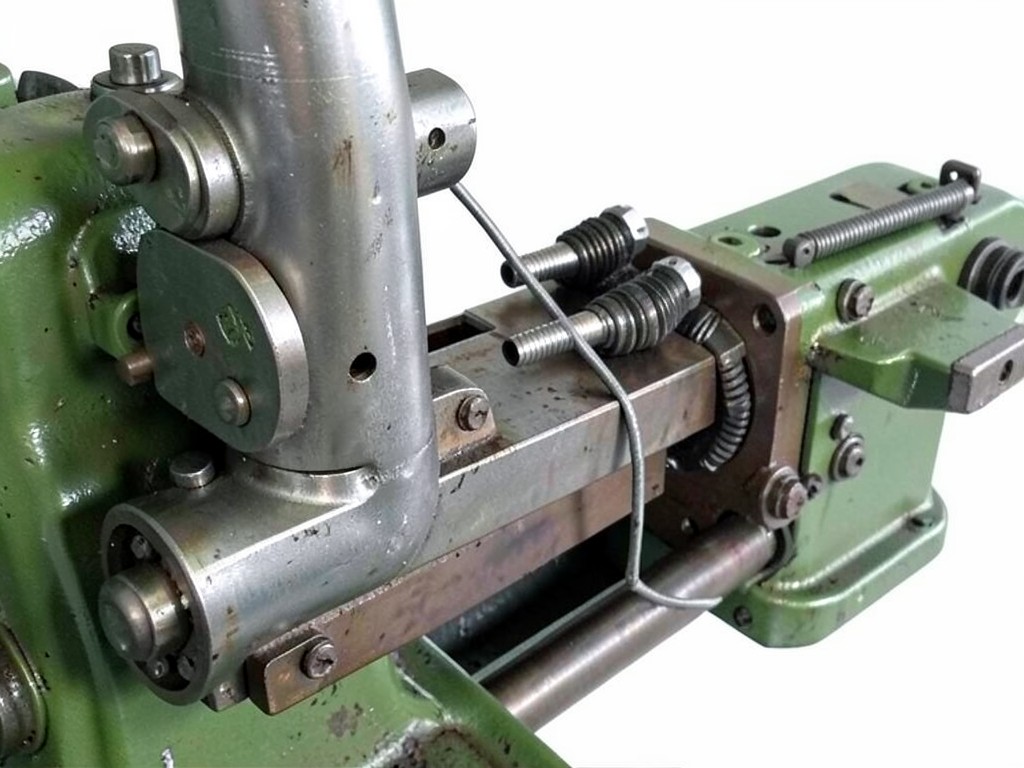

Figure 1: Lathe machine components in production line
📊 Lathe Component Material Standards
Bed & base: HT250 / HT300 grey iron per ISO 185
Spindle: 20CrMnTi / 40Cr alloy steel, HB230–270
Gearbox gears: 20CrMo, carburized 58–63 HRC
Guideways: HF induction hardening, 50–55 HRC
Lead screw: T10A / 65Mn, 45–52 HRC
🔍 Looking for OEM/ODM customized lathe parts? We manufacture to your exact drawings. Request a drawing review →
📐 Parts of Planer Machine: Full Breakdown
A planer machine specializes in producing flat, smooth surfaces on large workpieces. It uses a single-point cutting tool that traverses the stationary workpiece. Here are its fundamental parts.
1. Bed / Base
The base is a heavy, rigid casting that supports the entire planer. It absorbs vibration and maintains the machine's geometric accuracy. High-grade Meehanite or HT300 cast iron with cross-ribbed construction is typical.
2. Table / Worktable
The table reciprocates on the bed guideways, carrying the workpiece. Its top surface has T-slots for clamping. Table speed ranges from 3 to 30 m/min depending on hydraulic or mechanical drive. Stroke length can reach 3–9 meters in heavy-duty planers.
- Drive system: Reversible motor + rack-and-pinion, or hydraulic cylinder
- Surface flatness: 0.02 mm/m
3. Columns (Housings)
Two massive vertical columns (front and rear) rise from the bed on either side. They support the crossrail and provide rigid vertical guideways for the rail heads. Columns are box-section castings for maximum stiffness.
4. Crossrail
The crossrail bridges the two columns and supports the rail heads. It can be moved vertically for different workpiece heights. Crossrail clamping is mechanical or hydraulic to lock it at the desired height.
5. Tool Heads (Rail Head & Side Head)
Planer tool heads hold the cutting tools. A typical planer has two rail heads (on the crossrail) and one or two side heads (mounted on the columns). Each tool head can swivel to angle the tool.
- Tool head vertical travel: 100–300 mm
- Swivel range: ±60°
- Tool post type: Four-bolt clamp
6. Driving & Feed Mechanism
The table drive uses a reversible electric motor with a worm-and-rack system or a hydraulic cylinder. The feed mechanism provides incremental movement to the tool heads — typically 0.2–20 mm per stroke in horizontal and vertical directions.
Figure 2: Planer machine structural components
📊 Planer Component Material Standards
Bed & columns: HT300 / Meehanite cast iron
Table: HT350 with hardened guideways
Crossrail: HT300, stress relief annealed
Rack & pinion: 45# steel, induction hardened 48–55 HRC
Tool head assembly: Ductile iron QT500-7
ISO 9001:2015 Certified manufacturing
🏭 Need replacement or custom planer parts? We supply to your design or help reverse-engineer. Get technical review →
📋 Technical Specifications: Lathe vs Planer Machine Parts
Compare key parameters side-by-side. All values represent standard industrial configurations and are suitable for procurement / engineering reference.
| Parameter | Lathe Machine Parts | Planer Machine Parts |
|---|---|---|
| Bed material | HT250/HT300 grey cast iron | HT300/Meehanite cast iron |
| Guideway hardness | Induction hardened, 45–55 HRC | Induction hardened, 48–55 HRC |
| Spindle / table drive | Gear train + clutch, 30–3000 RPM | Reversible motor + rack and pinion, 3–30 m/min |
| Main precision-bearing type | Tapered roller / angular contact | Guideway sliding / plastic insert |
| Tool head travel | Compound slide: 100–200 mm | Rail head: 100–300 mm vertical |
| Workpiece size capacity | Swing: 200–1000 mm; Length: 500–4000 mm | Width: 600–2500 mm; Length: 2000–9000 mm |
| Surface finish achievable | Ra 0.8–3.2 µm | Ra 1.6–6.3 µm |
| Tolerance capability | IT6–IT8 (0.01–0.03 mm) | IT7–IT9 (0.02–0.05 mm) |
| Typical replacement cycle | 5–10 years for wear parts | 8–15 years for structural parts |
| Included in our export scope | ✅ Full bed, headstock, carriage, tailstock, apron, gearbox parts | ✅ Full bed, columns, crossrail, tool heads, rack, hydraulic parts |
⚙️ Need a specific size or material grade? We manufacture custom lathe and planer parts to ASTM, DIN, BS, and ISO standards. Send your drawing for a free technical review and quotation.
🔥 4 Common Procurement Pain Points — Solved
Pain Point 1: High Unit Price from Legacy Suppliers
Traditional European/US suppliers charge premiums of 30–50% due to aging production facilities. Our factory-direct pricing reduces your unit cost by 25–40% while maintaining equivalent or better metallurgy.
→ Solution: We offer transparent BOM-level quotes with material certifications.
Pain Point 2: Inconsistent Machining Quality
A survey of European machine shops showed that 38% received out-of-tolerance parts from offshore suppliers in 2025. Our in-process QC checks every critical dimension and hardness value before packing.
→ Solution: 3-stage inspection: incoming material → in-process → final CMM report.
Pain Point 3: High Shipping Costs / Delays
Ocean freight volatility remains a concern in 2026. We mitigate this via bulk consolidation and optimized packing, reducing shipping volume by up to 20% for heavy castings.
→ Solution: Sea, Rail, and Air options. DDP / EXW / FOB / CIF / DAP terms available.
Pain Point 4: Lack of OEM / ODM Support
You need custom bores, special coatings, or private labeling. Many trading companies can't do it. We have in-house engineering and a flexible workshop that supports drawing-based customization, prototyping, and small-batch production.
→ Solution: OEM/ODM with design-for-manufacturing (DFM) advice, free for qualified orders.
📈 Cost-Efficiency Analysis: Direct Sourcing in 2026
Typical cost breakdown comparison (Batch: 500 pcs of lathe bed components)
Traditional $58,000 -35%
WINDZONE $37,700
🏆 Why HEBEI WINDZONE?
- 20+ years of export experience
- Stable supply contracts with tier-1 factories
- ISO 9001:2015 quality management
- In-house QC + third-party inspection accepted
- Fast lead times: 15–35 days for standard parts
- Bank-telegraphic (T/T), LC flexible payment terms
📜 Certifications & Compliance for Machine Parts Export
We ensure every shipment is compliant with international standards and local regulations in the destination country.
CE Marking
EU machinery directive
ISO 9001:2015
Quality management
GS Tested Safety
German safety standard
UL Certification
North American standard
RoHS
Hazardous substances
🔬 Material test certificates (EN 10204 3.1 / 3.2) available for castings, forgings, and bar stock.
🏭 Real Factory, Real Capability
We are not a trading-only company. We operate integrated supply chains with partner factories in Hebei, Shandong, and Jiangsu provinces.
🤝 Clients Who Trust Us
"As a long-term buyer of mechanical components, we value suppliers that consistently meet lead times and provide honest pre-shipment inspections. HEBEI WINDZONE has been a reliable partner for our facility expansions." — Procurement Manager, European industrial group
💬 Real Conversations with Our Customers
🇩🇪 Germany — Lathe spare parts inquiry
🇺🇸 USA — Planer parts quote follow-up
🇦🇺 Australia — Delivery confirmation
❓ Frequently Asked Questions
Direct answers to the questions we hear every day as a machine parts exporter.
Q1: What are the basic parts of lathe machine that affect precision most?
The bed, spindle (headstock), and carriage system are the critical trio. Bed flatness ensures linear travel; spindle bearing runout controls roundness; carriage alignment determines taper accuracy. All three are CNC-machined and inspected to micron-level tolerances in our supplied components.
Q2: I need parts of planer machine for a 4-meter planer. Can you supply?
Yes. We supply bed, columns, crossrail, tool heads, racks, and drive components for planers with tables from 1m × 2m up to 2.5m × 9m. Castings are made to order with stress-relief treatment and individually tested for dimensional stability.
Q3: What is your MOQ for lathe machine parts (e.g., carriage or tailstock assemblies)?
For standard catalog parts, MOQ is 2–5 pieces for sampling and 10–50 pieces for production orders. For OEM/ODM custom castings, MOQ is typically 1–2 tons. We also support prototype development with DFM feedback.
Q4: How do you handle export compliance for CE/UL-certified parts?
We strictly follow the destination country's regulations. For EU, we provide CE declaration and material documentation ; for North America, we issue UL recognized component documentation and provide traceable batch certificates. Our logistics team handles customs paperwork on request.
Q5: What about shipping — FOB, CIF, or DDP?
We offer FOB Tianjin/Qingdao, CIF, CFR, DAP, and DDP delivery terms. For European buyers, rail + sea combined shipping is popular. Typical transit time: 25–35 days sea to Rotterdambut to Hamburg; 12–20 days to Los Angeles. We'll advise the most cost-effective route.
Q6: What is your after-sales / warranty policy?
We provide a 12-month warranty against manufacturing defects (machining errors, material faults, hardness deviations). In the event of a claim, we offer free replacement parts and a credit toward the next order. Our English-speaking after-sales team responds within 24 hours.
Q7: Can you help me identify the correct part for my old machine?
Absolutely. Send us photos, part numbers, drawings, or a worn-out sample. Our engineers will reverse-engineer and recommend the right material grade, dimensions, and manufacturing process. We do this daily for machines from DMG, Mazak, Okuma, and legacy European brands.
Q8: What payment methods do you accept?
We accept T/T (30% deposit, 70% before shipment), L/C at sight, and for long-term cooperative customers, D/P or OA terms can be discussed. For small sample orders, PayPal or Western Union is available.
⭐ Verified Customer Reviews
What our partners say about quality, delivery, and service.
John Miller
Maintenance Director, UK
"We sourced basic parts of lathe machine — bed and carriage for a rebuilt Colchester lathe. The machining tolerances matched our OEM spec exactly. Saved about £18,000 versus buying a new machine."
Anna Müller
Procurement Lead, DE
"The parts of planer machine we received were excellent quality. Milling of the crossrail slot was spot-on. Communication is direct and technical. We've placed three repeat orders in 2025."
Robert Tan
Operations Manager, SG
"We had a very tight deadline for a tailstock assembly. HEBEI WINDZONE expedited production and shipped within 14 days. The part fit perfectly on our CNC lathe. Their teamwork under pressure is truly professional."
Carlos Mendes
Plant Engineer, BR
"Their engineers helped us redesign a planer tool head, converting from manual to pneumatic clamping. The result boosted our workflow speed by 30%. Incredible value."
Hannah Weiss
Supply Chain Mgr, AT
"They handle customs paperwork extremely well. We use DDP terms, and shipments from China always arrive on time at our warehouse near Vienna. Very reliable sourcing channel for our machine maintenance team."
David Johnson
VP Operations, USA
"We compared quotes from four Asian suppliers. HEBEI WINDZONE offered the most comprehensive inspection plan and competitive pricing. Their pre-shipment video inspection gave us complete confidence. Ordered 120+ pcs of lathe parts."
