TIMING PULLEYS HTP 3M-06

HTP 3M-06

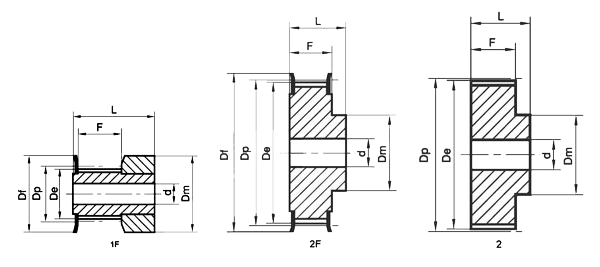

SPC	TYPE	Z	Dp	De	Df	Dm	F	L	d
10-3M-06	1F	10	9.55	8.79	13	13	7.2	14.5	3
12-3M-06	1F	12	11.46	10.70	15	15	7.2	14.5	4
14-3M-06	1F	14	13.37	12.61	16	16	7.2	14.5	4
15-3M-06	1F	15	14.32	13.56	17.5	18	7.2	14.5	4
16-3M-06	2F	16	15.28	14.52	18	10	9.8	17.5	6
18-3M-06	2F	18	17.19	16.43	19.5	11	9.8	17.5	6
20-3M-06	2F	20	19.1	18.34	23	13	9.8	17.5	6
21-3M-06	2F	21	20.05	19.29	25	14	9.8	17.5	6
22-3M-06	2F	22	21.01	20.25	25	14	9.8	17.5	6
24-3M-06	2F	24	22.92	22.16	25	14	9.8	17.5	6
26-3M-06	2F	26	24.83	24.07	28	16	9.8	17.5	6
28-3M-06	2F	28	26.74	25.98	32	18	9.8	17.5	6
30-3M-06	2F	30	28.65	27.89	32	20	9.8	17.5	6
32-3M-06	2F	32	30.56	29.80	37	22	9.8	17.5	6
36-3M-06	2F	36	34.38	33.62	38	25	10.3	18.0	6
40-3M-06	2F	40	38.2	37.44	43	28	10.3	18.0	6
44-3M-06	2F	44	42.02	41.26	48	33	10.3	18.0	6
48-3M-06	2	48	45.84	45.08	-	33	10.3	18.6	8
60-3M-06	2	60	57.3	56.54	-	33	10.3	18.6	8
72-3M-06	2	72	68.76	68.00	-	33	10.3	18.6	8
