L Couplings

L COUPLINGS

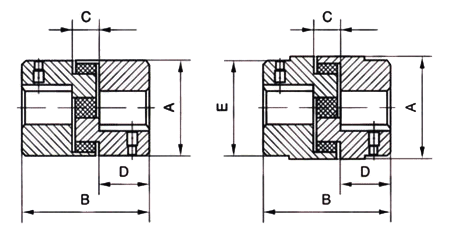

Catalog	fundamental dimensions					torgue needed Nm	rotational speed rpm	Bore max mm	stock bore sizes of the couplings	Mass kg
Catalog	A	B	C	D	E	torgue needed Nm	rotational speed rpm	Bore max mm	stock bore sizes of the couplings	Mass kg
CL035	16	20.2	7.8	6.5	—	0.5	30.000	9	8.9	0.03
CL050	28	43	12	15.5	—	3	17.000	16	10.12.14.16	0.13
CL070	35	50.7	12.7	19	—	5	13.000	19	10.12.14.16.18.19	0.24
CL075	45	55	12.7	20.5	—	10	10.000	24	12.14.16.18.19.20.22.24	0.40
CL090	54	55	12.7	21	—	16	9.000	25	14.16.18.19.20.22.24.25	0.68
CL095	54	64	12.7	25.5	—	22	9.000	29	14.16.18.19.20.22.24.25.28	0.71
CL099	65	73	19	27	—	45	7.000	35	20.22.24.25.28.30.32.35	1.22
CL100	65	89	19	35	—	50	7.000	35	20.22.24.25.28.30.32.35	1.40
CL110	84	108	22	43	—	90	5.000	42	25.28.30.32.35.38.40.42	3.0
CL150	96	115.4	25.4	45	80	150	5.000	48	30.32.35.38.40.42.45.48	5.0
CL190	115	133.4	25.4	54	102	200	5.000	54	35.38.40.42.45.48.50	7.6
CL225	127	153.4	26.4	64	108	300	4.200	67	38.40.42.45.48.50.55.60.65	9.0
CL276	157	200	41	79	127	542	4.200	73	45.48.50.55.60.65.70	21.0
