HRC COUPLINGS

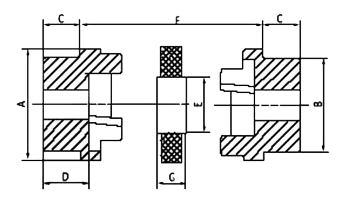

HRC FLEXIBLE COUPLINGS

HRC - Standard straight bore series (lengthen type)

SIZE	MAX BORE		DIMENSIONS								MASS KG
SIZE	MM	INS	A	B	E	F	G	C	D	L	MASS KG
70	32	1 1/4	69	60	31	25	18	20.0	23.5	65	1.20
90	42	1 5/8	85	70	32	30.5	22.5	26.0	30.0	82.5	1.68
110	55	2 1/8	112	100	45	45	29	37.0	45.0	119.0	7.20
130	60	2 3/8	130	105	50	53	36	47.0	55.5	147.0	7.86
150	70	2 3/4	150	115	62	60	40	50.0	60.0	160.0	10.25
180	80	3 1/8	180	125	77	73	49	58.0	70.0	189.0	23.90
230	100	4"	225	155	99	85.5	59.5	77.0	90.0	239.5	37.44
280	130	5"	275	206	119	105.5	74.5	90.0	105.5	285.5	72.00

HRC - Straight bore or taper bore ( universal series)

SIZE	MAX BORE		DIMENSIONS								MASS KG
SIZE	MM	INS	A	B	E	F	G	C	D	L	MASS KG
70	32	1 1/4	69	60	31	25	18	20.0	23.5	65	1.20
90	42	1 5/8	85	70	32	30.5	22.5	19.5	23.5	69.5	1.40
110	55	2 1/8	112	100	45	45	29	18.5	26.5	82	6.00
130	60	2 3/8	130	105	50	53	36	18.0	26.5	89	6.55
150	70	2 3/4	150	115	62	60	40	23.5	33.5	107	8.53
180	80	3 1/8	180	125	77	73	49	34.5	46.5	142	19.92
230	100	4"	225	155	99	85.5	59.5	39.5	52.5	164.5	31.20
280	130	5"	275	206	119	105.5	74.5	51.0	66.5	207.5	60.00
