GF COUPLINGS

GF Couplings

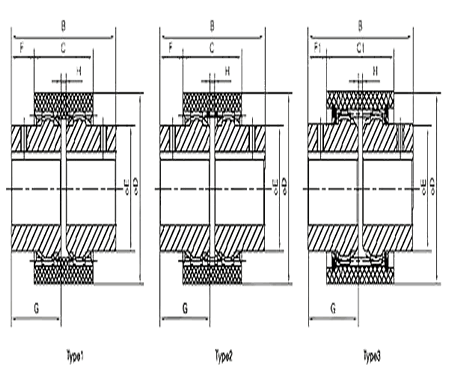

GF-coupling (standard series) (Type1 , Type2)

Catalog	fundamental dimensions							Bore		Max Torque (Nm)	Max Revolution n(rpm)	Moment Of Inertia (kg.cm2)	G (kg)
Catalog	D	E	B	C	F	G	H	Pilot	Max	Max Torque (Nm)	Max Revolution n(rpm)	Moment Of Inertia (kg.cm2)	G (kg)
GF-14	41	25	51	38	6.5	23.5	4	6	14	23	14000	0.27	0.222
GF-19	48	32	55	38	8.5	25.5	4	8	19	37	12000	0.64	0.388
GF-24	52	36	57	42	7.5	26.5	4	10	24	46	10000	0.92	0.497
GF-28	68	45	86	48	19	41	4	10	28	103	8000	3.45	1.166
GF-32	75	50	84	48	18	40	4	12	32	138	7100	5.03	1.424
GF-38	85	58	84	50	17	40	4	14	38	176	6300	9.59	1.991
GF-42	95	63	88	50	19	42	4	20	42	220	6000	13.06	2.387
GF-48	100	68	104	50	27	50	4	20	48	308	5600	18.15	3.198
GF-55	120	82	124	65	29.5	60	4	25	55	570	4800	49.44	5.617
GF-65	140	95	144	72	36	70	4	25	65	840	4000	106.34	8.635

GF-coupling (standard series) (Type3)

Catalog	fundamental dimensions							Bore		Max Torque (Nm)	Max Revolution n(rpm)	Moment Of Inertia (kg.cm2)	G (kg)
Catalog	D	E	B	C1	F1	G	H	Pilot	Max	Max Torque (Nm)	Max Revolution n(rpm)	Moment Of Inertia (kg.cm2)	G (kg)
GF-24	52	36	57	52	2.5	26.5	4	10	24	46	10000	0.92	0.497
GF-28	68	45	86	58	14	41	4	10	28	103	8000	3.45	1.166
GF-32	75	50	84	58	13	40	4	12	32	138	7100	5.03	1.424
GF-38	85	58	84	62	14	40	4	14	38	176	6300	9.59	1.991
GF-42	95	63	88	62	14	42	4	20	42	220	6000	13.06	2.387
GF-48	100	68	104	66	14	50	4	20	48	308	5600	18.15	3.198
GF-55	120	82	124	81	15	60	4	25	55	570	4800	49.44	5.617
GF-65	140	95	144	88	15	70	4	25	65	840	4000	106.34	8.635

GF-coupling (lengthen series) (Type1 , Type2)

Catalog	fundamental dimensions							Bore		Max Torque (Nm)	Max Revolution n(rpm)	Moment Of Inertia (kg.cm2)	G (kg)
Catalog	D	E	B	C	F	G	H	min	max	Max Torque (Nm)	Max Revolution n(rpm)	Moment Of Inertia (kg.cm2)	G (kg)
GF-14L	41	25	64	38	13	30	4	6	14	23	14000	0.32	0.282
GF-19L	48	32	84	38	23	40	4	8	19	37	12000	0.9	0.588
GF-24L	52	36	104	42	31	50	4	10	24	46	10000	1.7	0.877
GF-28L	68	45	124	48	38	60	4	10	28	103	8000	5.1	1.666
GF-32L	75	50	124	48	38	60	4	12	32	138	7100	7.68	2.044
GF-38L	85	58	164	50	57	80	4	14	38	176	6300	17.45	3.791
GF-42L	95	63	224	50	87	110	4	20	42	220	6000	32.15	5.707
GF-48L	100	68	224	50	87	110	4	20	48	308	5600	42.9	6.618
GF-55L	120	82	224	65	79.5	110	4	25	55	570	4800	92.97	13.597
GF-65L	140	95	224	72	76	140	4	25	65	840	4000	211.84	16.435

GF-coupling (lengthen series) (Type3)

Catalog	fundamental dimensions							Bore		Max Torque (Nm)	Max Revolution n(rpm)	Moment Of Inertia (kg.cm2)	G (kg)
Catalog	D	E	B	C1	F1	G	H	Pilot	Max	Max Torque (Nm)	Max Revolution n(rpm)	Moment Of Inertia (kg.cm2)	G (kg)
GF-24L	52	36	104	52	26	50	4	10	24	46	10000	1.7	0.877
GF-28L	68	45	124	58	33	60	4	10	28	103	8000	5.1	1.666
GF-32L	75	50	124	58	33	60	4	12	32	138	7100	7.68	2.044
GF-38L	85	58	164	62	52	80	4	14	38	176	6300	17.45	3.791
GF-42L	95	63	224	62	82	110	4	20	42	220	6000	32.15	5.707
GF-48L	100	68	224	66	82	110	4	20	48	308	5600	42.9	6.618
GF-55L	120	82	224	81	71.5	110	4	25	55	570	4800	92.97	13.597
GF-65L	140	95	224	88	68	140	4	25	65	840	4000	211.84	16.435

Catalog	Parallel nisalignment	auglular misalignment	Shaft End-play
GF-14	0.7	±2°	±1
GF-19	0.8	±2°	±1
GF-24	0.8	±2°	±1
GF-28	1.0	±2°	±1
GF-32	1.0	±2°	±1
GF-38	0.9	±2°	±1
GF-42	0.9	±2°	±1
GF-48	0.9	±2°	±1
GF-55	1.2	±2°	±1
GF-65	1.3	±2°	±1
