FLS COUPLINGS

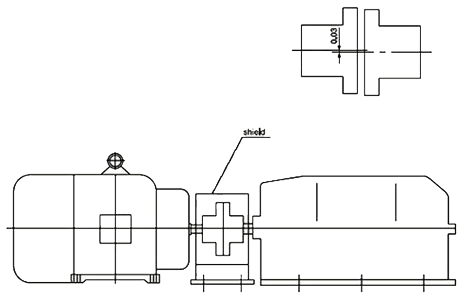

FLS Coupling

Catalog	fundamental dimensions						Bore		Bolts		Max Torque (Nm)	Max Revolution n(rpm)	Moment Of Inertia kg.cm2	G (kg)
Catalog	A	C	B	a	L	F	Pilot	Max	Sizes	Qty	Max Torque (Nm)	Max Revolution n(rpm)	Moment Of Inertia kg.cm2	G (kg)
FLS-112	112	50	75	10	40	16	13	30	M10	4	110	6000	43	2.90
FLS-125	125	56	85	14	45	18	13	35	M14	4	170	6000	75	4.03
FLS-140	140	71	100	14	50	18	13	42	M14	6	300	6000	120	5.55
FLS-160	160	80	115	14	56	18	14	48	M14	8	450	6000	210	7.49
FLS-180	180	90	132	14	63	18	14	55	M14	8	630	5700	350	9.73
FLS-200	200	100	145	20	71	22.4	18	60	M20	8	850	5200	690	15.30
FLS-224	224	112	170	20	80	22.4	18	70	M20	8	1400	4700	1100	19.30
FLS-250	250	125	180	25	90	28	20	75	M20	8	1600	4200	2000	28.80
FLS-280	280	140	200	28	100	28	30	85	M24	8	2500	3750	3300	38.00
FLS-315	315	160	236	28	112	28	32	100	M25	10	4000	3350	5400	50.00
FLS-355	355	180	260	360	125	35.5	32	110	M30	8	5000	3000	11000	77.50
FLS-400	400	200	300	36	125	35.5	50	125	M30	10	7500	26.5	17000	96.60
FLS-450	450	224	355	36	140	35.5	60	140	M30	12	11000	2360	28000	127.00
FLS-560	560	250	450	36	160	35.5	80	150	M30	14	14000	1900	65000	198.00
FLS-630	630	280	530	36	180	35.5	90	170	M30	18	20000	1670	110000	261.00
