EP COUPLINGS

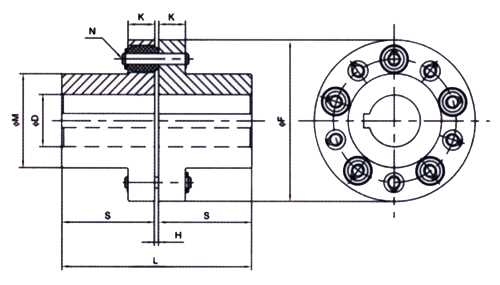

EP Coupling

Catalog	fundamental dimensions						Bore		N	Max Torque (Nm)	Max Revolution (rpm)	Moment of Inertia (kg.cm2)	G (kg)
Catalog	F	M	L	H	K	S	poilot	max	N	Max Torque (Nm)	Max Revolution (rpm)	Moment of Inertia (kg.cm2)	G (kg)
E120P	120	71	143	3	20	70	—	45	10	350	6000	62.3	6
E140P	140	85	163	3	20	80	—	55	14	600	5300	123.3	9
E160P	160	102	183	3	20	90	—	60	16	900	4500	246.6	14
E180P	180	103	204	4	25	100	—	65	12	1300	4000	391.4	17
E200P	200	118	234	4	25	115	—	75	14	1800	3600	652.3	27
E225P	225	145	264	4	25	130	40	90	16	2600	3200	1268.5	47
E250P	250	147	305	5	38	150	45	95	14	4600	3000	2200.8	55
E300P	300	182	365	5	38	180	50	110	16	6500	2500	5409.2	85
E350P	350	200	406	6	60	200	60	120	12	10500	2200	12626.6	130
E400P	400	232	446	6	60	220	70	140	14	14500	1800	22818.4	190
E450P	445	253	487	7	72	240	75	160	12	21000	1600	38377.0	260
E500P	495	288	527	7	72	260	75	180	14	28000	1400	61737.8	350
E550P	545	322	567	7	72	280	80	210	16	36000	1200	93726.1	450
E630P	625	375	567	7	90	280	130	250	14	75000	1000	190030.3	710
E680P	680	405	567	7	90	280	150	270	16	95000	900	267733.2	980
E800P	795	420	607	7	90	300	180	280	20	146000	760	471359.6	1100
E900P	900	448	607	7	90	300	200	300	22	200000	680	769873.0	1250
E1100P	1100	550	807	7	100	400	280	350	28	350000	600	2035250.0	2520
