Dimensional Inconsistency

A 0.05mm tolerance deviation on a motor shaft leads to 37% higher bearing wear and premature failure, increasing downtime costs by up to $12,000 per hour in automated lines.

Multi-Supplier Logistics Headaches

Sourcing retaining rings from one supplier and shafts from another doubles your freight costs and increases the risk of production delays by 40%.

Hidden Quality Costs

Low-cost suppliers often skip heat treatment and dynamic balancing. A shaft that fails after 3 months costs 5x more in warranty claims and brand reputation damage.

Poor Engineering Support

Without a dedicated engineering team, customizing a spline shaft or a specific circlip groove becomes a 3-month R&D cycle.

🔘 Types of Ring in Motor Assembly

We manufacture a full spectrum of rings designed for high-stress, high-speed motor environments:

• ✅ Retaining Rings (Circlips): Internal & external types for bearing retention. Made from spring steel SK5 & 65Mn.
• ✅ Spacer Rings: Precision ground for accurate axial positioning. Tolerance ±0.01mm.
• ✅ Commutator Rings: Copper alloy for DC motor armatures. High conductivity & wear resistance.
• ✅ Laminated Rings: For stator cores, using high-grade silicon steel with low core loss.

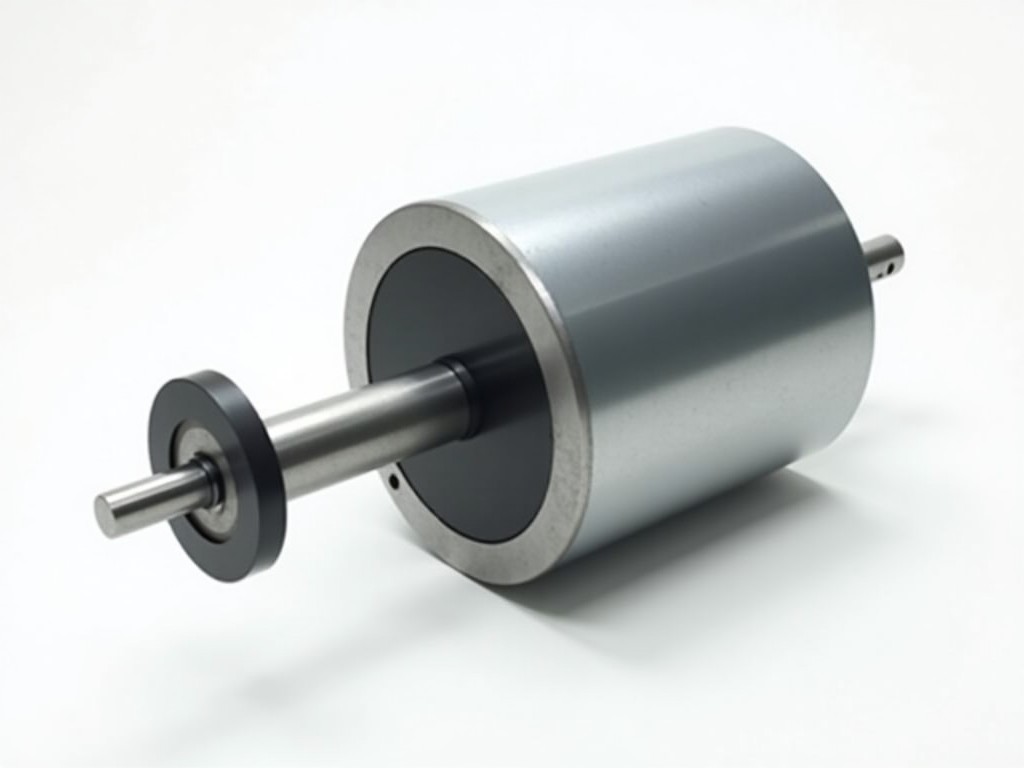

⛓️ Types of Shaft for Motor Assembly

Our shafts are engineered for absolute concentricity and torque transmission. We specialize in:

• 💪 Rotor Shafts: High-strength 4140/42CrMo steel, heat treated to HRC 28-32.
• 💪 Step Shafts: Multi-diameter shafts for complex gear trains. Ground to <0.002mm concentricity.
• 💪 Spline Shafts: Involute and straight-side splines for high-torque servo motors.
• 💪 Hollow Shafts: Lightweight design for robotics and aerospace applications.

⭐ What are the common types of ring used in motor assembly?

The most common are retaining rings (circlips), spacer rings, and commutator rings. Each serves a specific function: axial retention, spacing, or current conduction. We recommend material based on RPM and load.

⭐ How do I choose the right types of shaft for my motor?

It depends on torque requirements and mounting. Step shafts are ideal for multi-bearing setups, while spline shafts are best for high-torque transmission. Our engineers can guide you based on your motor frame size.

⭐ What is the minimum order quantity (MOQ) for custom shafts?

For standard types of shaft, MOQ is 100 pcs. For custom OEM designs, we start at 500 pcs. We also offer a sample order service for qualification purposes.

⭐ How do you ensure the quality of the rings and shafts?

We follow a strict QC process: incoming material inspection (spectrometer), in-process dimensional checking (CMM), and final functional testing (hardness, concentricity, dynamic balancing). All data is recorded and traceable.

⭐ Can you provide custom packaging for US/EU warehouses?

Yes. We offer retail-ready packaging, bulk packaging, and kanban bins. We also have experience shipping to Amazon FBA and 3PL warehouses in the US and Europe.

⭐ What are the lead times for delivery to the USA?

Typical lead time is 25-35 days for manufacturing. Sea freight to the USA takes 25-30 days. We also have a fast-track express service (DDP) for urgent orders, delivering in 15-20 days.

"We were struggling with shaft vibration issues. Windzone provided a custom spline shaft solution that completely eliminated the problem. Their engineering support is world-class."

— Mike S., Operations Manager, Texas, USA

"Finally, a Chinese supplier who understands EU standards. The retaining rings we ordered were perfectly dimensioned and certified. We've reduced our inspection time by 60%."

— Hans G., Purchasing Manager, Bavaria, Germany

"The DDP shipping option was a game-changer. We received our motor shafts at our Melbourne warehouse with zero customs hassle. Highly recommend their logistics team."

— David L., CEO, Sydney, Australia

"We work with Windzone for our EV motor prototypes. Their ability to produce small batches of custom types of ring with tight tolerances is unmatched. They are our trusted partner."

— Aisha R., R&D Director, Silicon Valley, USA

About the Author: Ethan Chen

Senior Mechanical Engineer & Supply Chain Specialist at HEBEI WINDZONE
With 15+ years in industrial motor component manufacturing, Ethan has helped over 200 clients in the US and EU optimize their BOM costs and lead times. He specializes in translating complex technical requirements into scalable factory solutions.
