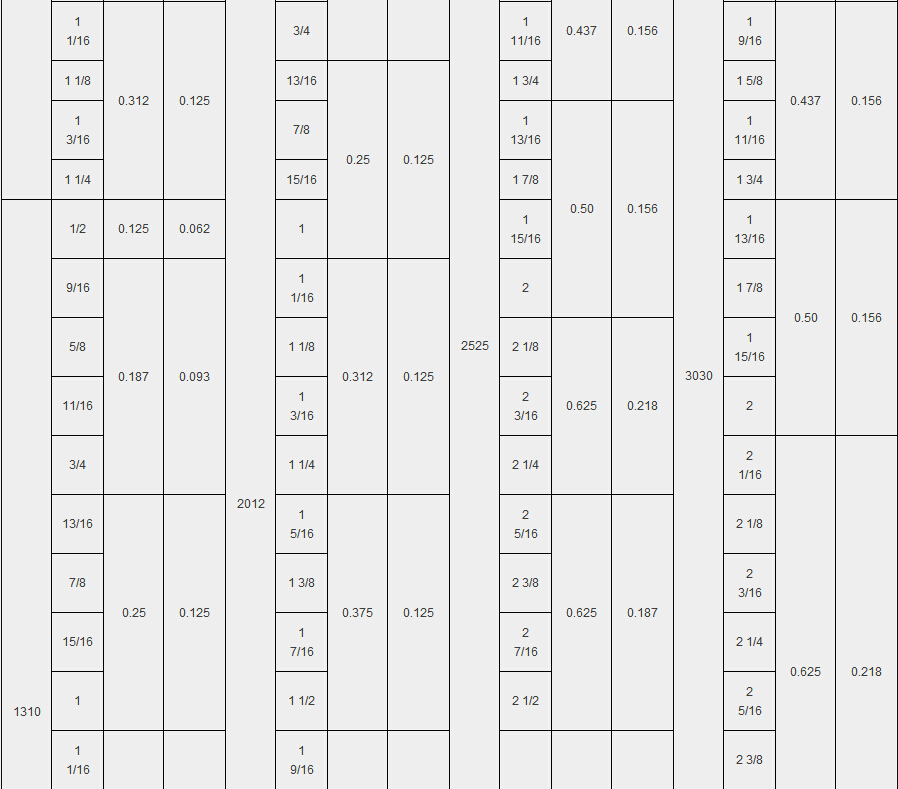

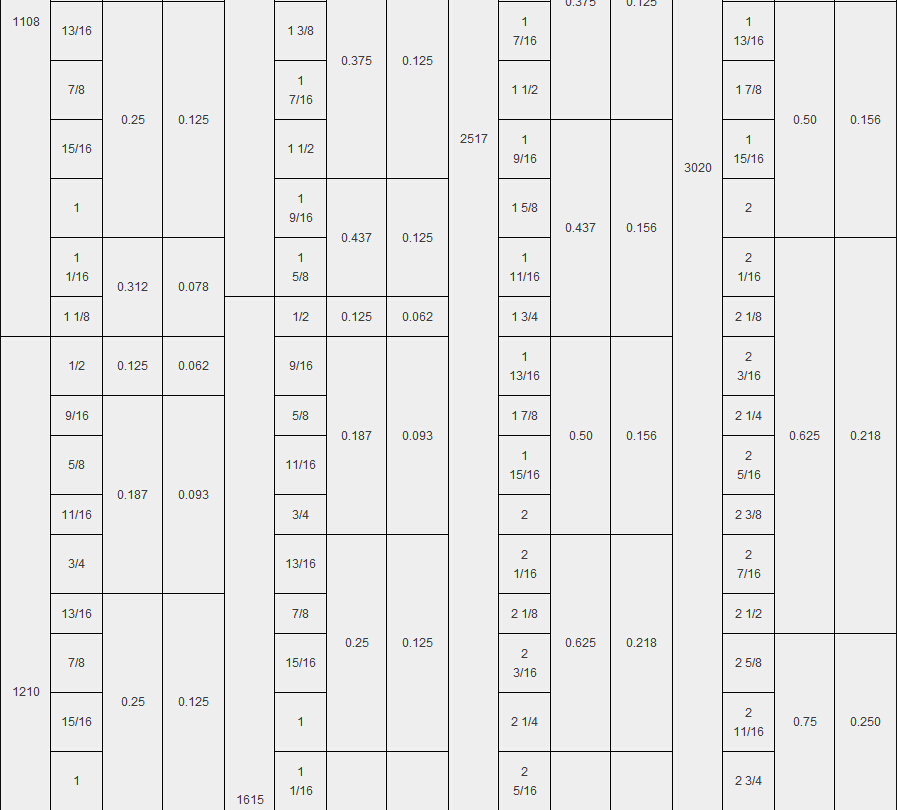

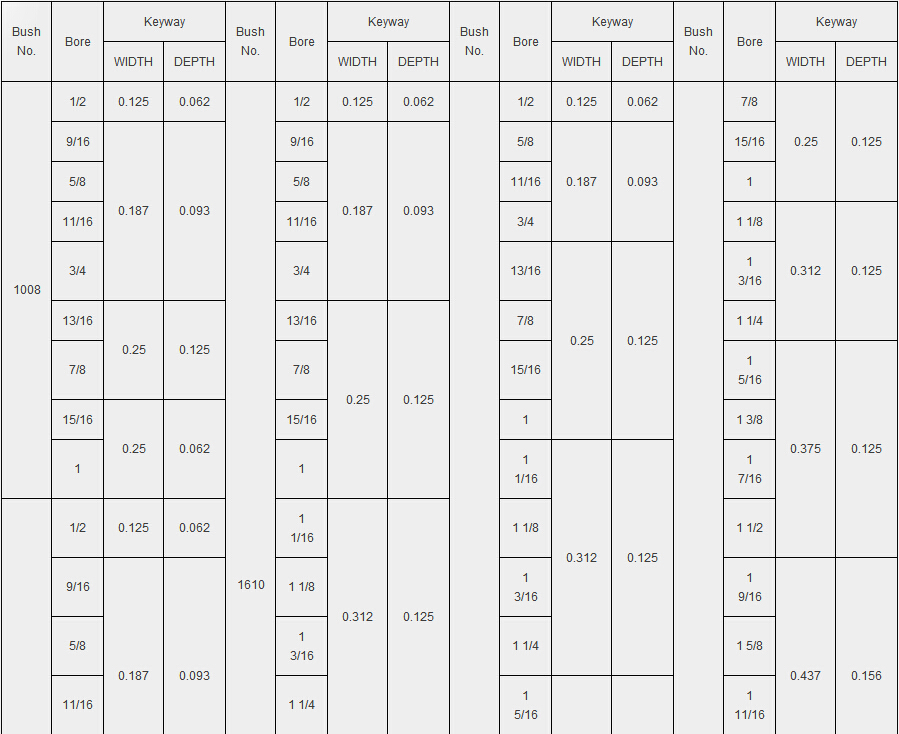

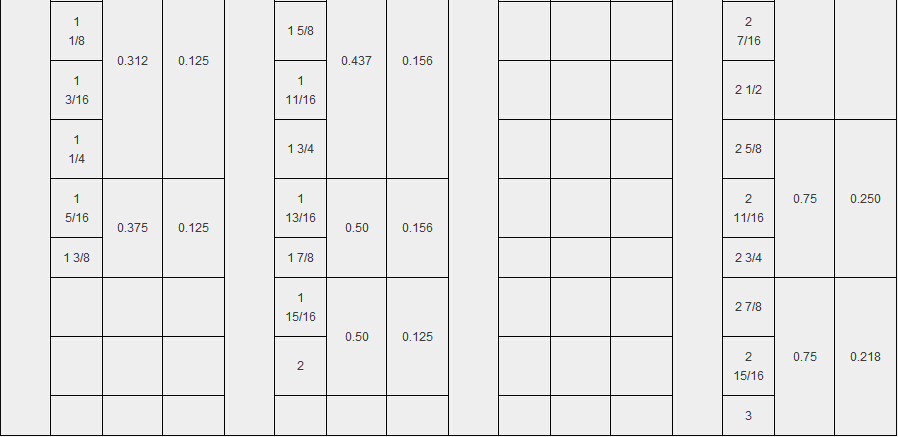

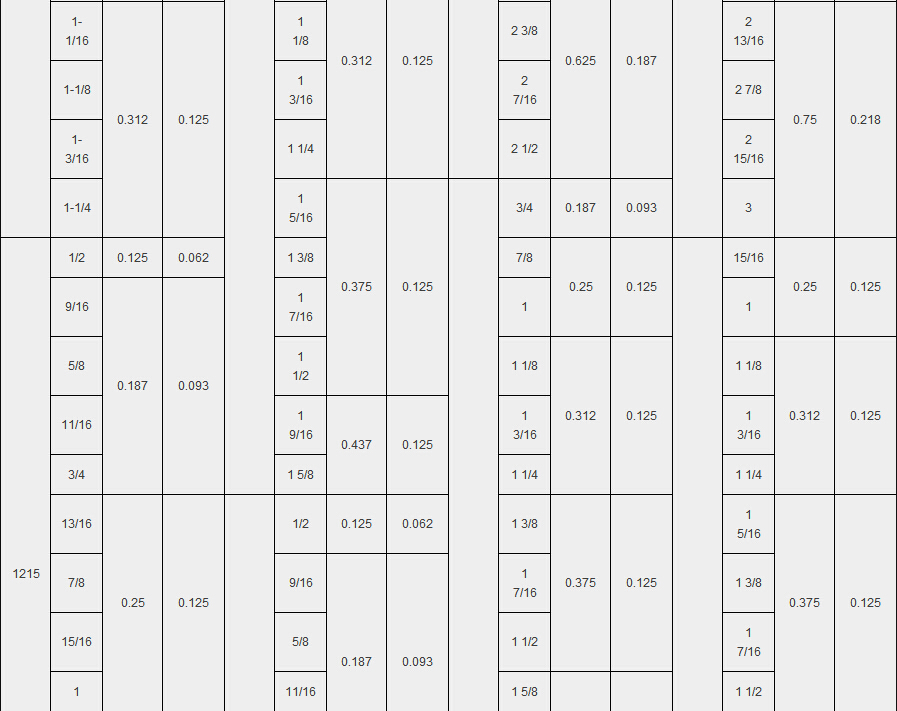

TAPER BUSHING KEYWAY - BS

Bush No.	Bore	Keyway		Bush No.	Bore	Keyway
Bush No.	Bore	WIDTH	DEPTH	Bush No.	Bore	WIDTH	DEPTH
3535	1 3/16	0.312	0.125	4545	1 15/16	0.50	0.156
	1 1/4	0.312	0.125		2	0.50	0.156
	1 3/8	0.375	0.125		2 3/16	0.625	0.218
	1 7/16				2 3/8
	1 1/2				2 7/16
	1 5/8	0.437	0.156		2 5/8	0.75	0.25
	1 11/16				2 3/4
	1 3/4				2 7/8
	1 7/8	0.50	0.156		2 15/16
	1 15/16				3
	2				3 1/8	0.875	0.312
	2 1/8	0.625	0.218		3 3/16
	2 3/16				3 1/4
	2 1/4				3 3/8
	2 5/16				3 7/16
	2 3/8				3 1/2
	2 7/16				3 5/8	1.0	0.375
	2 1/2				3 3/4
	2 5/8	0.75	0.25		3 7/8
	2 11/16				3 15/16
	2 3/4				4
	2 7/8				4 1/8	1.25	0.437
	2 15/16				4 3/16	1.25	0.437
	3				4 1/4	1.25	0.25
	3 1/8	0.875	0.312		4 3/8
	3 3/16				4 7/16
	3 1/4				4 1/2
	3 5/16	0.875	0.25		4 3/4
	3 3/8			5050	2 7/16	0.625	0.218
	3 7/16				2 15/16	0.75	0.25
	3 1/2				3 3/8	0.875	0.312
4040	1 7/16	0.375	0.125		3 7/16	0.875	0.312
	1 1/2	0.375	0.125		3 5/8	1.0	0.375
	1 5/8	0.437	0.156		3 3/4
	1 11/16				3 7/8
	1 3/4				3 15/16
	1 7/8	0.50	0.156		4
	1 15/16				4 1/4	1.25	0.437
	2				4 3/8
	2 1/8	0.625	0.218		4 7/16
	2 3/16				4 1/2
	2 1/4				4 7/8	1.25	0.312
	2 3/8				4 15/16
	2 7/16				5
	2 1/2
	2 5/8	0.75	0.25
	2 11/16
	2 3/4
	2 7/8
	2 15/16
	3
	3 1/8	0.875	0.312
	3 3/16
	3 1/4
	3 3/8
	3 7/16
	3 1/2
	3 5/8	1.0	0.375
	3 11/16	1.0	0.375
	3 3/4	1.0	0.25
	3 7/8
	3 15/16
	4
	4 7/16	1.25	0.25
