MOTOR SLIDE

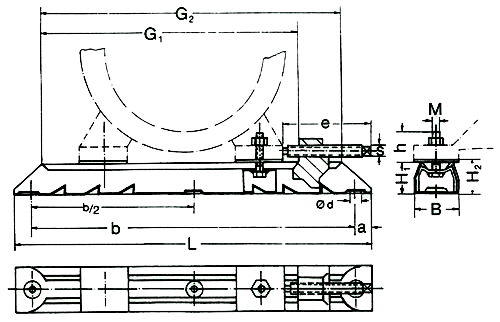

Motor Slide DIMENSIONS

UNIT: mm

Type	L	G1	Motor-type	M x h	l x S	G2	a	b	b/2	фd	B	H1	H2
312/6	312	240	63/71	M6x19	75x8	262	16	280	-	12	40	28	30
312/8	312	240	80/90	M8x27	75x8	262	16	280	-	12	40	28	30
375/6	375	305	63/71	M6x19	75x8	325	16	343	-	12	40	28	30
375/8	375	305	80/90	M8x27	75x8	325	16	343	-	12	40	28	30
375/10	375	305	100/112	M10x32	75x8	325	16	343	-	12	40	28	30
395/8	395	302	80/90	M8x28	100x9	325	20	355	-	12	50	40	43
395/10	395	302	100/112	M10x35	100x9	325	20	355	-	12	50	40	43
495/8	495	405	80/90	M8x29	100x9	425	20	455	-	12	50	40	43
495/10	495	405	100/112/132	M10x35	100x9	425	20	455	-	12	50	40	43
495/12	495	405	160	M12x49	100x9	425	20	455	-	12	50	40	43
530/10	530	413	132	M10x37	120x12	442	25	480	-	14	60	50	54
530/12	530	413	160	M12x49	120x12	442	25	480	-	14	60	50	54
630/10	630	515	132	M10x37	120x12	542	25	580	-	14	60	50	54
630/12	630	515	160x180	M12x45	120x12	542	25	580	-	14	60	50	54
686/12	686	538	160x180	M12x43	155x16	575	28	630	315	18	75	60	64
686/16	686	538	200/225	M16x62	155x16	575	28	630	315	18	75	60	64
864/16	864	700	200/225	M16x60	340x17	810	32	800	400	24	90	75	-
864/20	864	700	250x280	M20x68	340x17	810	32	800	400	24	90	75	-
1072/20	1072	865	250x280	M20x77	375x24	995	36	1000	500	30	112	100	-
1072/24	1072	865	315	M24x88	375x24	995	36	1000	500	30	112	100	-
1330/24	1330	1065	315/355	M24x95	430x27	1215	40	1250	625	30	130	125	-

1. Draw spind Grade 8.8 HRC28-32		3.Washer DIN127
2. Nut DIN93418		4.Bolt DIN934/8
