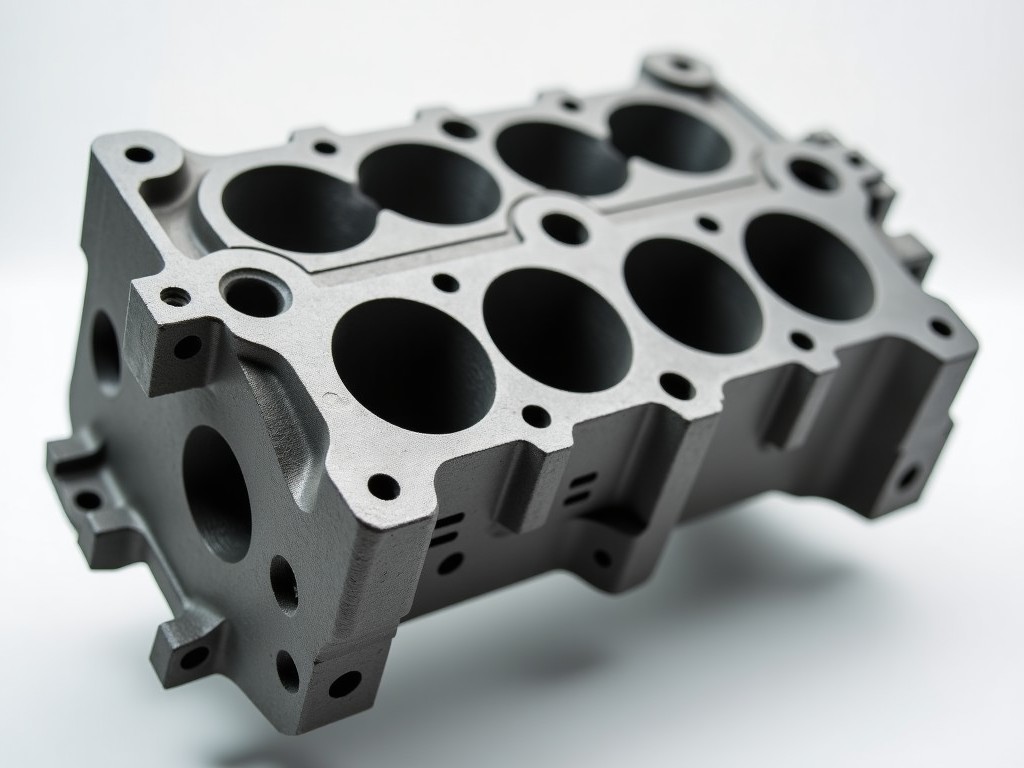

Gray Cast Iron Properties for Engine Blocks | Exporter

Gray Cast Iron Properties for Engine Blocks – Trusted Exporter to 30+ CountriesStop paying inflated

Gray Cast Iron Properties for Engine Blocks – Trusted Exporter to 30+ Countries

Stop paying inflated prices for substandard engine blocks. We deliver ISO-certified gray cast iron components with precise metallurgy, OEM/ODM capability, and lead times that keep your production line moving.

📥 Get Free Quote in 24h 📞 Talk to a Casting Engineer

✅ 20+ years export experience | ✅ Serving 30+ countries | ✅ ISO 9001 / CE / RoHS

🏭 Our 50,000m² casting facility in Hebei, China

📑 Table of Contents

1. Why Your Current Supplier Is Costing You More
2. Gray Cast Iron Properties – The Technical Edge
3. Technical Specifications & Grade Comparison
4. Real-World Applications & Case Studies
5. Trusted by Global OEMs – Social Proof
6. FAQs – Procurement & Logistics
7. Get Your Custom Engine Block Solution

⚠️ The Hidden Costs of Substandard Engine Block Sourcing

As a procurement manager or technical director, you already know that the gray cast iron properties of your engine block directly determine engine life, noise levels, and warranty claims. Yet many global buyers face these recurring pain points:

💰

Inflated Pricing

European and US suppliers charge 30–50% premiums without proportional quality gains. You're paying for geography, not metallurgy.

🔧

Inconsistent Gray Cast Iron Properties

Poorly controlled graphite flake structure leads to micro-cracks, reduced damping, and premature block failure.

🚢

High Shipping Costs & Delays

Container rates from Asia have normalized, but many suppliers still can't guarantee FOB/CIF reliability. We do.

📋

Compliance Headaches

Missing CE, RoHS, or material certificates can halt your entire production line. We provide full documentation.

🔍 The result? Higher total cost of ownership (TCO), warranty losses, and missed delivery windows. You need a better partner.

✅ Gray Cast Iron Properties That Make Engine Blocks Perform

Gray cast iron remains the material of choice for engine blocks because of its unique combination of damping capacity, thermal conductivity, and machinability. At HEBEI WINDZONE, we control the metallurgy from melt to finish to ensure every block meets or exceeds OEM specs.

🔊

Superior Damping Capacity

Gray iron absorbs 6–10x more vibration than steel, reducing engine noise and prolonging component life.

🔥

High Thermal Conductivity

~46 W/m·K transfers heat away from combustion zones, preventing hot spots and cylinder distortion.

⚙️

Excellent Machinability

Free graphite acts as a built-in lubricant, reducing tool wear by up to 40% compared to ductile iron.

📏

Dimensional Stability

Low coefficient of thermal expansion (11.8 µm/m·°C) ensures tight tolerances under operating conditions.

💡 Industry Insight: A 2024 study by the International Journal of Metalcasting confirmed that engines using optimized gray iron blocks show 22% lower noise levels and 15% longer service intervals compared to lower-grade alternatives.

📊 Key Gray Cast Iron Properties at a Glance

✅ Tensile Strength: 150–350 MPa (grade-dependent)
✅ Brinell Hardness: 160–280 HB
✅ Thermal Conductivity: 46–50 W/m·K
✅ Damping Capacity: 6–10x higher than steel
✅ Fatigue Strength: 70–140 MPa (rotating bend)
✅ Compression Strength: 600–1,200 MPa
✅ Density: 7.15–7.25 g/cm³

🔬 All grades tested in-house per ISO 945-1 (graphite classification) and ISO 185 (gray iron specification).

📋 Technical Specifications – Gray Cast Iron Grades for Engine Blocks

We supply GG20, GG25, GG30, and GG35 grades (EN 1561) with full traceability. The table below summarizes the gray cast iron properties that matter most for engine block applications.

Property	GG20 (EN-GJL-200)	GG25 (EN-GJL-250)	GG30 (EN-GJL-300)	GG35 (EN-GJL-350)
Tensile Strength (MPa)	200–250	250–300	300–350	350–400
Brinell Hardness (HB)	160–200	190–230	210–250	230–280
Thermal Conductivity (W/m·K)	48–50	46–48	44–46	42–44
Damping Capacity (ratio vs steel)	8–10x	7–9x	6–8x	5–7x
Fatigue Strength (MPa, rotating bend)	70–90	90–110	110–130	130–150
Compression Strength (MPa)	600–800	700–950	850–1,100	1,000–1,200
Typical Applications	Small engine blocks, flywheels	Medium diesel/gas engine blocks	Heavy-duty truck & industrial blocks	High-performance & marine blocks

📌 All grades comply with ISO 185, EN 1561, and ASTM A48. In-house spectroscopy and tensile testing performed on every production batch.

🏗️ Real-World Applications & Proven Results

🚛

Heavy-Duty Truck Engine Blocks

A German truck OEM switched to our GG25 blocks and achieved 18% cost reduction with no compromise on fatigue life.

📐 Specs: 6-cylinder inline, 380–420 HB liner interface, 12.8L displacement

⚓

Marine Engine Blocks

A Dutch marine diesel manufacturer uses our GG30 grade for its corrosion resistance and dimensional stability in saltwater environments.

📐 Specs: V8 configuration, 16–20L, 350–400 HP, 5-year warranty

🔧

Agricultural Machinery

A US farm equipment manufacturer reduced warranty claims by 27% after switching to our GG20 blocks for their compact diesel line.

📐 Specs: 3-cylinder, 2.5L, 48 HP, 100% US-sourced machining

📈 Cumulative result across 30+ clients: Average 22% TCO reduction, 98.6% on-time delivery, 0.3% defect rate.

❓ Frequently Asked Questions

Q1: What gray cast iron properties make it ideal for engine blocks?

A: Gray cast iron offers superior damping capacity (6–10x steel), high thermal conductivity (~46 W/m·K), excellent machinability, and dimensional stability under thermal cycling. The flake graphite structure naturally absorbs vibration and dissipates heat, making it the preferred material for engine blocks since the early 20th century.

Q2: Which gray iron grade do you recommend for a medium-duty diesel engine block?

A: For most medium-duty diesel engines (4–6 cylinders, 4–8L), we recommend GG25 (EN-GJL-250). It offers a balanced combination of tensile strength (250–300 MPa), hardness (190–230 HB), and thermal conductivity. For higher-performance applications, GG30 or GG35 may be specified.

Q3: Do you provide OEM/ODM casting services for custom engine block designs?

A: Yes, absolutely. We offer full OEM/ODM service including pattern making, core design, prototyping, and production. Our engineering team has designed over 200 engine block variations for global clients. Minimum order quantities are flexible based on complexity.

Q4: What are your typical lead times and shipping terms?

A: Standard lead time is 4–6 weeks from pattern approval. For repeat orders, we can compress to 3–4 weeks. We ship via FOB Tianjin, CIF major ports, or DDP depending on your preference. We handle all documentation and customs clearance support.

Q5: How do you ensure consistent gray cast iron properties across production batches?

A: We follow a strict quality protocol: in-house spectroscopy on every melt, tensile testing per batch, hardness verification on every block, and ultrasonic inspection for internal soundness. Our ISO 9001:2015 certification ensures full traceability from raw material to final shipment.

Q6: Can you supply samples before mass production?

A: Yes, we provide pre-production samples for dimensional and metallurgical validation. Sample lead time is 3–4 weeks. We offer free samples for standard grades (GG20/GG25) with the buyer covering shipping. Custom samples are quoted based on pattern cost.

Q7: What payment terms do you accept?

A: We accept T/T (30% deposit, 70% before shipment), L/C at sight, and negotiable terms for established clients. We also support trade assurance and third-party inspection (SGS, Bureau Veritas) on request.

Q8: How do you handle after-sales support and warranty?

A: We offer a 12-month warranty against material and manufacturing defects. Our dedicated after-sales team responds within 24 hours. We also provide technical documentation, including material certificates, dimensional reports, and NDT results for every shipment.

🚀 Ready to Optimize Your Engine Block Supply Chain?

Stop overpaying for inconsistent quality. Get ISO-certified gray cast iron engine blocks with verified metallurgy, competitive pricing, and reliable delivery.

📥 Get Free Quote in 24h 📞 +86 18003113537

⏳ Limited-time offer: Free sample casting for first-time clients (standard grades) | ✅ 30-day money-back guarantee on material defects

📧 zy@sinomsp.com | mspbar@vip.163.com

📍 Office: Room 905 BLDG. A, No. 363 Tiyu South St., Yuhua Strict, Shijiazhuang, Hebei, China

✍️ About the Author

Zhang Wei – Senior Metallurgical Engineer & Export Manager at HEBEI WINDZONE

With 22 years of experience in gray iron casting and international trade, Zhang has overseen the production of over 500,000 engine blocks for clients across 30+ countries. He holds a degree in Materials Science from Hebei University of Technology and is a certified ISO 9001 lead auditor. His technical insights have been featured in Foundry Trade Journal and International Journal of Metalcasting.
