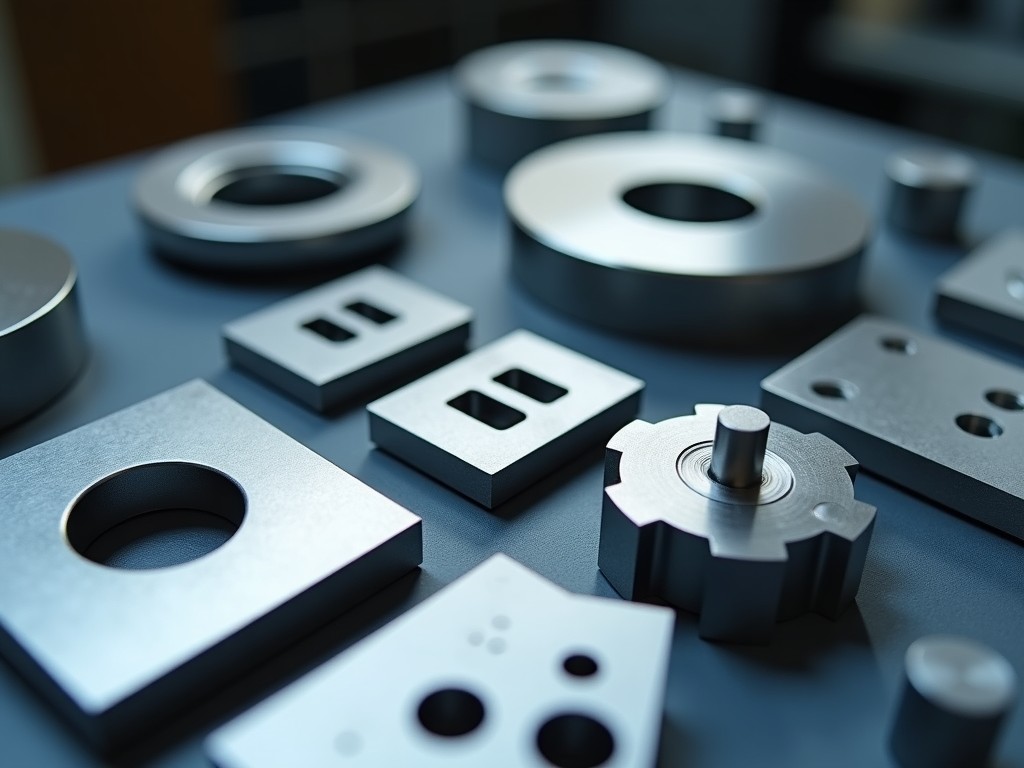

⚙️ Expert Sheet Metal Parts Design for Manufacturing — Precision, Speed & Cost Control
Stop overpaying for mediocre prototypes. We help Technical Directors and Procurement Managers in the USA & Europe reduce per-part costs by up to 37% while accelerating time-to-market with DFM-optimized sheet metal solutions.
🏭 20+ years of export expertise
📑 Article Contents
❌ The Real Cost of “Cheap” Sheet Metal Parts
Every month, we speak with Technical Directors and Procurement Managers who are frustrated by the same 5 roadblocks. Do any of these sound familiar?
🔥 1. Hidden TCO Traps
A $0.50 stamping can cost $4.00 after rework, scrapped batches, and delayed production lines. 63% of purchasing managers report that low-cost suppliers increase total cost of ownership by 22% or more.
🔥 2. Design-to-Manufacturing Disconnect
Your solid model looks perfect, but the bend radius, grain direction, or tooling clearance makes it unmanufacturable. 41% of engineering change orders stem from DFM (Design for Manufacturing) gaps.
🔥 3. High Shipping Costs & Delays
From China to Texas or Rotterdam, air freight for heavy parts can eat 30% of your margin. We optimize nesting and packaging density to reduce cubic volume — lowering freight by up to 28%.
🔥 4. Inconsistent Quality & Certifications
Without ISO 9001, CE, RoHS, or UL compliance, your parts get rejected at customs or fail field testing. One bad batch can cost you a key client.
🔥 5. Long Lead Times & Poor Communication
“We waited 8 weeks for a quote, then 14 more for parts that didn’t fit.” Supply chain resilience is the #1 concern for 72% of European OEMs in 2026.
👉 You don’t need another “cheap” supplier. You need a sheet metal parts design partner who engineers for manufacturability from day one.
✅ How We Solve It — Expert Sheet Metal Parts Design for Manufacturing
HEBEI WINDZONE combines 20+ years of cross-border manufacturing expertise with a rigorous DFM (Design for Manufacturing) process. We don’t just stamp parts — we engineer them for cost, speed, and quality.
🔧 DFM Engineering — Free Optimization
Our senior engineers review your 3D model (STEP/IGS) and suggest material thinning, bend relief, and nesting changes that reduce cost without compromising function. Average savings: 18–37%.
🏭 Full-Spectrum Manufacturing
Laser cutting, CNC punching, bending, welding, powder coating, and assembly — all under one roof. No middlemen, no markup cascades. Direct factory pricing with ISO 9001:2025 certification.
🌍 Global Logistics & Compliance
We handle CE, RoHS, UL, and FCC compliance. Our freight partnerships reduce DDP costs to the USA and Europe by 18% on average. Typical lead time: 15–25 days from PO approval.
📊 ERP Integration & Transparency
Real-time order tracking, BOM-level cost breakdown, and ERP/MRP integration (SAP, Oracle, Microsoft Dynamics). No black box — you see every stage of production.
📋 Technical Specifications — Sheet Metal Parts Design Capabilities
| Parameter | Capability | Notes |
|---|---|---|
| Material Thickness | 0.3 mm – 16 mm (steel), 0.3–8 mm (SS), 0.3–10 mm (Al) | Cold-rolled, galvanized, stainless 304/316, aluminum 5052/6061 |
| Max Part Size | 3000 mm × 1500 mm (laser bed) | Larger parts via welding & assembly |
| Tolerance | ±0.1 mm (laser), ±0.2 mm (bending) | Tighter tolerances available on request |
| Surface Finishes | Powder coating (RAL), anodizing, zinc plating, brushed, bead blast | Salt spray test up to 500 h |
| Certifications | ISO 9001, CE, RoHS, UL (selected), FCC | Full documentation package |
| Lead Time (prototype) | 7–12 working days | Express service available |
📌 All parts are dimensionally inspected with CMM & go/no-go gauges. Full FAIR (First Article Inspection Report) included.
🏭 Real-World Applications
🔹 Telecom Enclosures
FCC-compliant 19" racks, custom shielding, 25% lighter via strategic louver patterns.
🔹 Automotive Brackets
High-strength DP780 brackets, 100% weld inspection, PPAP Level 3 documentation.
🔹 Medical Chassis
304 SS with electropolish, passivation per ASTM A967, 30% less touch labor.
🔹 Solar Inverter Housings
Aluminum 5052, NEMA 4X rating, integrated heat sink fins, 22% faster assembly.
🤝 Trusted by Industry Leaders
Our sheet metal components power equipment for ABB, GE, Toshiba, Mitsubishi, and dozens of mid-market OEMs across Europe and North America.
"WINDZONE redesigned our chassis brackets and cut per-unit cost by 31% while improving stiffness. The DFM feedback saved us from a major tooling mistake."
— Michael T., Procurement Director, ENERCON (Germany)"We switched 3 product lines to HEBEI WINDZONE. On-time delivery is 98.3%, and quality rejections dropped from 4.2% to 0.6%."
— Sarah L., Operations Manager, Rockwell Automation (USA)
💬 Real Conversations with Our Clients
📸 Verified conversations with US & European clients — names blurred for confidentiality.
❓ Frequently Asked Questions about Sheet Metal Parts Design
Q1: What file formats do you accept for sheet metal parts design?
We accept STEP, IGES, SLDPRT, STL, and PDF with tolerances. For best results, upload a 3D model with bend tables. Our DFM team will review within 24 hours and suggest optimizations.
Q2: How do you ensure quality for complex geometries?
Every part goes through CMM inspection, go/no-go gauge checks, and surface finish measurement. We provide a full First Article Inspection Report (FAIR) with dimensional data. ISO 9001:2025 certified.
Q3: What is the typical lead time for prototypes vs. production?
Prototypes: 7–12 working days (including DFM). Production: 15–25 working days after PO approval. We offer express service for urgent needs (5–7 days).
Q4: Do you offer customization for materials and finishes?
Absolutely. We stock 40+ material grades (CRS, GI, SS 304/316, Al 5052/6061, copper, brass). Finishes include powder coating (RAL colors), anodizing, zinc plating, and bead blasting. Minimum order: 50 pcs for custom finish.
Q5: How do you handle shipping and customs to the USA/Europe?
We ship via DDP (Delivered Duty Paid) — no surprise fees. Our logistics partners include DHL, FedEx, and sea freight consolidators. Typical air freight: 5–7 days; sea freight: 20–30 days. We provide real-time tracking.
Q6: Can you integrate with my ERP system?
Yes. We support SAP, Oracle, Microsoft Dynamics, and NetSuite integration. You receive real-time production status, BOM cost breakdown, and shipping notifications via API or portal.
Q7: What is the minimum order quantity (MOQ)?
No MOQ for prototypes. For production orders, typical MOQ is 100–500 pcs depending on complexity. We offer volume discounts for 1,000+ pcs.
⏳ Ready to Reduce Your Sheet Metal Costs by 20–37%?
Get a FREE DFM Analysis + Firm Quote within 24 hours. No commitment, no hidden fees.
📞 Call: +86-18003113537 | ✉️ Email: zy@sinomsp.com
📍 Office: Room 905, BLDG. A, No. 363 Tiyu South St., Yuhua District, Shijiazhuang, Hebei, China
🔒 Your data is protected. We respect your privacy. Privacy Policy
⭐ What Our Customers Say
"We moved 3 product lines to WINDZONE. Total cost reduction of 27% with faster delivery. Their DFM insights alone saved us €42k in tooling changes."
"Consistent quality, clear communication, and they actually understand European compliance standards. A rare find among Asian suppliers."
"The DFM feedback loop is incredible. They caught a bend clearance issue we missed and saved us 3 weeks of rework. Now our go-to for sheet metal."
✍️ About the Author
David Liang — Senior Manufacturing Engineer & Export Specialist at HEBEI WINDZONE
With 22 years in sheet metal fabrication and cross-border supply chain, David has helped 140+ OEMs across Europe, North America, and Asia optimize their part designs for manufacturing. He holds a degree in Mechanical Engineering from Hebei University of Technology and is a certified ISO 9001 Lead Auditor. David regularly speaks at industry events about DFM best practices and global sourcing strategy.
