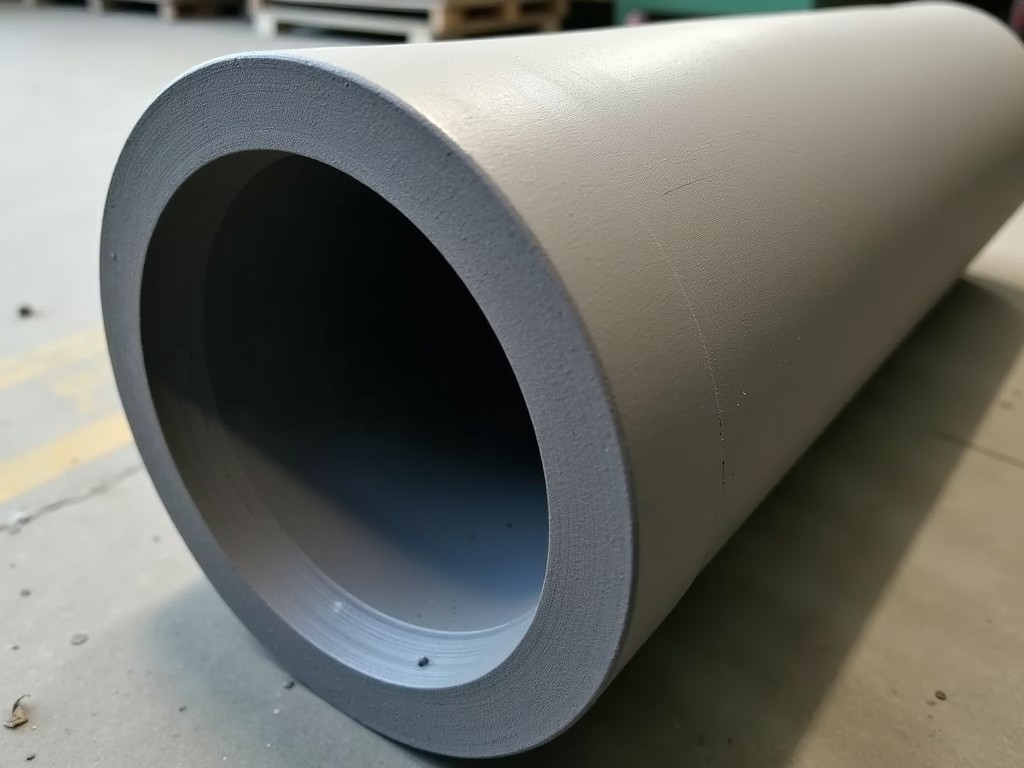

Custom Cast Iron Sleeve Material for Heavy Cylinders — Precision OEM/ODM Supplier
Engineered for hydraulic & pneumatic cylinders that demand high wear resistance, dimensional stability, and cost-efficient lead times. Eliminate sourcing risk with a single trusted partner.
✅ ISO 9001 · CE · RoHS · 20+ years export experience · 500+ clients in 30+ countries
🏭 15,000㎡ dedicated production facility⚠️ Why Sourcing Cast Iron Sleeves Feels Like a Gamble
Every year, procurement teams waste 15–25% of their budget on inconsistent quality, missed deadlines, and hidden logistics costs. Here are the real pain points we hear from engineering and purchasing leaders:
“We switched to HEBEI WINDZONE after 3 consecutive delayed shipments from our previous supplier. Their cast iron sleeve material met our hardness spec on the first batch — and they delivered in 5 weeks.” — Procurement Manager, German hydraulic systems OEM
✅ Precision Cast Iron Sleeve Material — Built for Heavy Cylinders
Our cast iron sleeve material is engineered for hydraulic cylinders, pneumatic actuators, and heavy-duty press systems. We combine 20+ years of metallurgical expertise with a vertically integrated supply chain to deliver consistent quality at competitive prices.
Powerful Factory
15,000㎡ workshop · 60+ CNC machining centers · 5 induction furnaces · capacity: 800+ tons/month.
Quality Assurance
100% ultrasonic testing · hardness HB 180–240 · porosity < 1.2% · tensile strength ≥ 250 MPa.
OEM/ODM Design
Custom OD/ID, length, oil grooves, keyways, flanges, surface treatment (phosphating, PTFE coating).
High-Speed Delivery
Standard lead time 4–6 weeks · express shipping 7–10 days DDP · air freight available for urgent orders.
📊 Technical Specifications — Cast Iron Sleeve Material
| Parameter | Value / Range | Standard / Test Method |
|---|---|---|
| Material Grade | HT250 · HT300 · GGG40 · GGG50 | ISO 185 · ASTM A48 · DIN 1691 |
| Hardness (HBW) | 180 – 240 (customizable 160–280) | ISO 6506-1 · ASTM E10 |
| Tensile Strength (MPa) | ≥ 250 (HT250) · ≥ 400 (GGG50) | ISO 6892-1 · ASTM E8 |
| Porosity / Density | ≤ 1.2% · density 7.2–7.4 g/cm³ | Archimedes method · ASTM B328 |
| OD Range (mm) | 30 – 600 (custom up to 800) | ISO 2768-m · ±0.05 mm on request |
| Surface Finish (Ra) | 0.4 – 1.6 µm (as machined) | ISO 1302 · ASME B46.1 |
| Certifications | ISO 9001:2015 · CE · RoHS · REACH | Third-party lab reports available |
* Custom compositions (Ni-Cr, Mo, Cu additions) available for high-temperature or corrosive environments. Contact us for a tailored cast iron sleeve material datasheet.
Hydraulic Cylinders
Excavators, mobile cranes, press brakes — replaceable sleeve liners reduce downtime by 40%.
Pneumatic Actuators
Low-friction honed surface for millions of cycles without galling.
Heavy Press & Die Casting
High compressive strength sleeves for 2,000+ ton forming presses.
❓ Frequently Asked Questions — Cast Iron Sleeve Material
We supply HT250, HT300, GGG40, GGG50, and custom alloyed grades (Ni-Cr, Mo, Cu). All meet ISO 185, ASTM A48, and DIN 1691 standards. We also offer continuous cast iron bar for smaller diameters.
✅ Yes — we offer full OEM/ODM machining: OD/ID turning, honing, keyway broaching, oil groove milling, and surface treatments (phosphating, PTFE, hard chrome). Just send your 2D/3D drawing.
Standard lead time is 4–6 weeks from drawing approval. For urgent orders, we offer express production (2–3 weeks) + air freight. We also keep stock of popular sizes.
We follow a 3-stage QC: incoming raw material spectrometric analysis, in-process dimensional inspection (CMM), and final hardness/ultrasonic test. 100% traceability with batch number.
ISO 9001:2015, CE, RoHS, REACH, and UL for applicable products. We also provide FDA-compliant surface coatings for food-grade cylinders. Third-party lab reports are included.
We offer DDP (Delivered Duty Paid) for most EU and US destinations — no surprise fees. Shipping options: sea freight (LCL/FCL), air freight, express (DHL, FedEx). We handle all customs documentation.
MOQ is 50 pieces for standard sizes, 20 pieces for custom dimensions. Prototype samples (1–5 pcs) are available at a nominal cost, refundable with bulk order.
Yes — we offer free samples (up to 2 pieces) for qualified engineering evaluations. You only pay shipping. Contact us with your specs and we’ll prepare a sample within 7 working days.
🚀 Ready to Source Cast Iron Sleeve Material at Direct Factory Prices?
Get your custom quotation + technical datasheet within 24 hours. Risk-free samples available.
🔒 Free samples · DDP shipping · ISO 9001 · 100% quality guarantee · No hidden fees
🌍 Trusted by Engineering Leaders Worldwide
🏭 CNC machining & quality inspection line
✔ ISO 9001 · CE · RoHS · UL · GS · REACH · FDA-compliant coatings
“The cast iron sleeve material from WINDZONE reduced our cylinder rework rate from 8% to 0.6%. Consistently meets HB 210–220.”
“OEM samples matched our 3D model perfectly. Lead time was 5 weeks instead of the usual 12. We’ve placed 3 repeat orders.”
“We saved 31% on total landed cost compared to our previous EU supplier. Zero quality issues in 18 months.”
